Hydraulic Hose Repairs Limavady
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Limavady
What hydraulic hose support in Limavady actually means
A hydraulic breakdown around Limavady can be deceptively simple: one failed line, one immobilised machine and a crew waiting for movement to return. The expensive part is rarely the length of hose itself; it is the lost operating time while the correct assembly is identified and made.
CPR serves Limavady and surrounding areas including Ballykelly, Greysteel, Dungiven and routes towards Derry and Coleraine. Nearby places such as Ballykelly, Dungiven and Derry are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on hose assemblies for excavators, handlers, agricultural machinery and contractor plant working across mixed terrain. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Limavady, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.
Heavy excavators
For Limavady, this includes large machines where a burst hose can stop an entire site operation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Compact excavators
For Limavady, this includes smaller plant where tight routing makes a few centimetres of hose length significant. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Telehandlers & forklifts
For Limavady, this includes lifting equipment with boom, mast, steering and attachment circuits. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Loaders & shovel plant
For Limavady, this includes repeated lift/tilt cycles that demand durable routing and correct crimped ends. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural equipment
For Limavady, this includes high-use seasonal machinery where downtime quickly becomes expensive. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Ancillary plant
For Limavady, this includes hydraulically powered attachments, presses and specialist machinery. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
Routing, bend and abrasion matter after the new hose is fitted
For Limavady, the fastest useful evidence is often a complete picture of the failed assembly before it is disturbed. A close-up of a fitting helps, but a wider view can show whether the apparent hose end is actually threaded into an adapter, a rigid pipe union or a manifold block.
A hose that is too short can be pulled tight at full articulation. One that is too long can rub, snag or kink. Hose life can also be shortened by twisting, tight bends, clamp points, heat and contact with steel edges. When a hose has failed repeatedly in the same place, the route deserves as much attention as the replacement assembly.
Excavator hoses live in constant movement
Boom, dipper and bucket hoses flex repeatedly as the machine cycles. Auxiliary lines for breakers, grabs and other attachments can also see harsh movement and exposure. Correct length, routing and end angle are therefore especially important on excavators and diggers; a hose that looks fine with the boom lowered can be under tension at full reach.
Applied to Limavady, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Make the machine safe
Secure attachments, isolate stored energy and follow the machine maker’s depressurising procedure before touching the line. That is especially relevant around Limavady when downtime or machine recovery is difficult.
Capture the evidence
Photograph both ends, hose markings, adapters and the route before dismantling; keep the failed hose intact where practical. That is especially relevant around Limavady when downtime or machine recovery is difficult.
Match the assembly
Confirm hose family, bore, end style, length and any angular relationship between fittings. That is especially relevant around Limavady when downtime or machine recovery is difficult.
Refit without creating stress
Check the hose through the machine’s working range so it is not twisted, pulled tight or rubbing. That is especially relevant around Limavady when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| Thread or flange family | A fitting can be the same apparent size yet use a different thread form or flange pattern. | Photograph the entire end and the machine-side port. |
| Sealing face | Some ends seal on a cone, flat face, O-ring or flange surface rather than on the thread. | Take a straight-on photo of the nose/face of the fitting. |
| Straight / 45° / 90° geometry | The angle determines how the hose leaves the port and whether it clears surrounding steelwork. | Keep the failed assembly in its natural orientation. |
| Adapters | Machine-side adapters can be mistaken for part of the hose fitting. | Photograph the connection before dismantling. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Limavady breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Pulled tight at full reach
Boom and attachment machinery can hide a length problem until the machine reaches full extension or articulation. For a Limavady breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
External impact or crush
Debris, attachments, tools and moving structures can damage a hose even when the hydraulic specification itself is correct. For a Limavady breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Heat exposure
A hose routed too close to exhausts, engines or other hot components can age faster and lose flexibility. For a Limavady breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Contamination at open ports
A burst line can leave open connections exposed. Keeping dirt out while the hose is replaced protects valves, pumps and other components. For a Limavady breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Wrong or forced fitting
A connection that looks nearly right can still use a different seat or sealing method. Forcing it can damage the port and create a leak that a new hose alone will not solve. For a Limavady breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

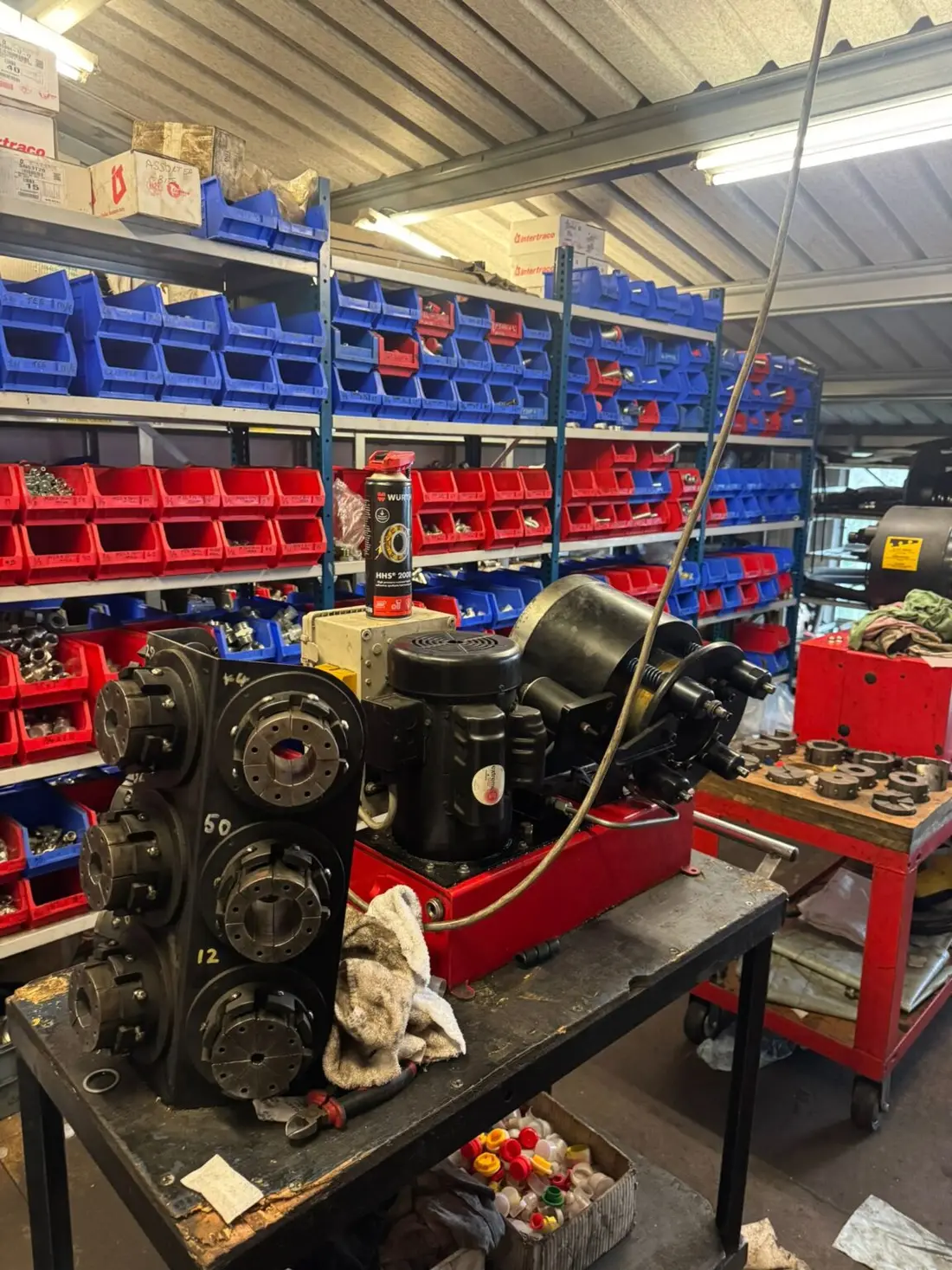

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Limavady target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Limavady
The page covers Limavady and surrounding areas including Ballykelly, Greysteel, Dungiven and routes towards Derry and Coleraine. Nearby places include Ballykelly, Dungiven, Derry, Coleraine and Greysteel.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Limavady page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Limavady and whether the machine can be moved safely.
Based in Lavy. Serving Limavady.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Limavady and nearby areas where suitable.
Magherafelt BT45 8QD
Limavady is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Limavady
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Limavady?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Limavady and nearby areas such as Ballykelly and Dungiven.
What should I send before a hose breakdown visit around Limavady?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Limavady?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Limavady is an area we service, not a separate branch location. This page describes genuine service coverage for Limavady and surrounding areas; call-out suitability depends on the job and availability.
