Hydraulic Hose Repairs Coleraine
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Coleraine
What hydraulic hose support in Coleraine actually means
For contractors and plant operators around Coleraine, the useful question is not whether somebody can make 'a hose'. It is whether the replacement will match the machine’s pressure duty, connection style, overall length and movement without introducing another weak point.
CPR serves Coleraine and nearby areas including Portstewart, Portrush, Garvagh, Ballymoney and Castlerock. Nearby places such as Portstewart, Portrush and Garvagh are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on plant hose replacement for machinery operating across construction, landscaping, agricultural and commercial sites. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Coleraine, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.

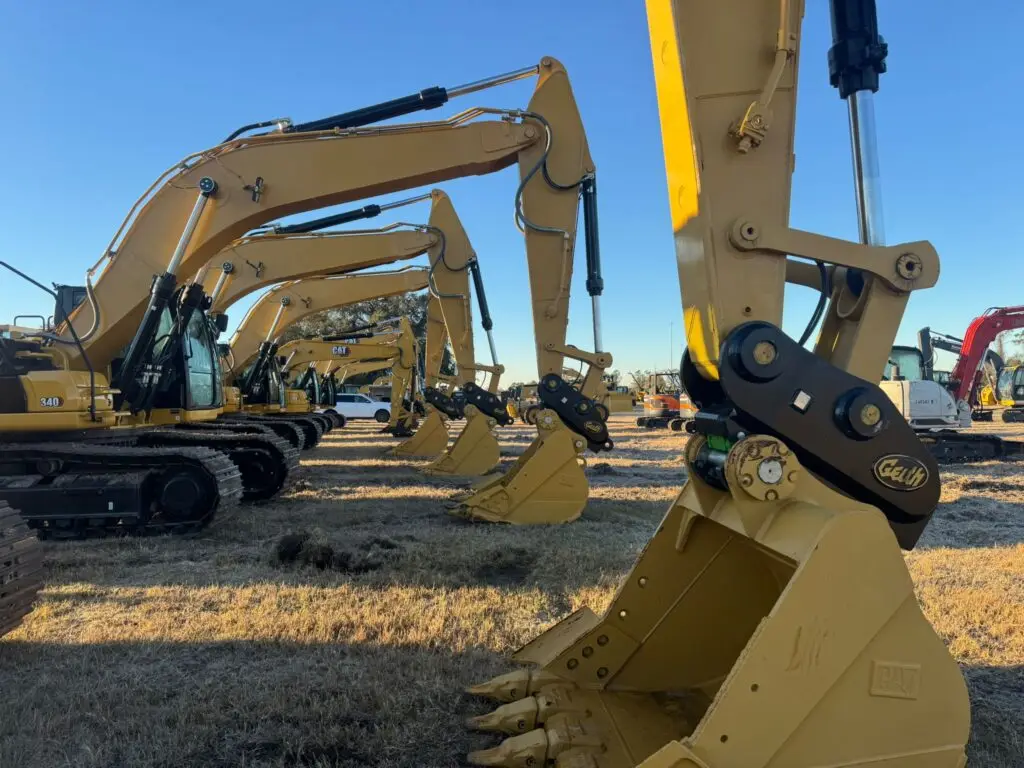

Excavators & diggers
For Coleraine, this includes boom, dipper, bucket and auxiliary hose circuits that flex through constant articulation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Telehandlers
For Coleraine, this includes boom-extension and attachment lines where controlled movement and end orientation are critical. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Wheel loaders
For Coleraine, this includes lift, tilt and auxiliary hoses exposed around loader arms and couplers. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Dumpers
For Coleraine, this includes tipping and steering circuits on site machinery. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural handlers
For Coleraine, this includes loader, steering and implement hydraulics working in dirty conditions. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Attachments
For Coleraine, this includes breakers, grabs and powered tools that rely on correctly matched auxiliary hoses. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
Routing, bend and abrasion matter after the new hose is fitted
When plant is stopped around Coleraine, recovery cost can exceed the hose job itself. If the machine cannot lower, steer, tip or travel safely, a mobile response may be more sensible than arranging transport. If the hose is accessible and removable, workshop manufacture can be the cleaner route.
A hose that is too short can be pulled tight at full articulation. One that is too long can rub, snag or kink. Hose life can also be shortened by twisting, tight bends, clamp points, heat and contact with steel edges. When a hose has failed repeatedly in the same place, the route deserves as much attention as the replacement assembly.
Telehandler boom circuits need careful routing
Telehandlers combine long boom movement, attachment circuits and tight routing spaces. Hoses need enough controlled movement without being allowed to rub, twist or snag as the boom extends and retracts. If a hose has failed near a guide, clamp or bend, that location should be considered when the replacement is installed.
Applied to Coleraine, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Work out what actually failed
A wet fitting, burst body and abrasion spot are different clues. Identify the exact failed assembly before parts are removed. That is especially relevant around Coleraine when downtime or machine recovery is difficult.
Protect the open circuit
Once disconnected, keep dirt and debris away from open ports and the new assembly. That is especially relevant around Coleraine when downtime or machine recovery is difficult.
Build from a reliable reference
Use the original assembly and machine-side connections to verify the replacement instead of relying on a visual guess. That is especially relevant around Coleraine when downtime or machine recovery is difficult.
Check the route under movement
A hose that looks fine parked can tighten or foul when a boom or attachment moves. That is especially relevant around Coleraine when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| BSP / JIC / ORFS / Metric-DIN / SAE-style | These families use different threads and sealing arrangements even when they look similar at a glance. | Show both male and female connection faces where possible. |
| Fitting seat condition | A damaged sealing face can continue to leak after a new hose is fitted. | Inspect the machine-side seat, not just the old hose. |
| End orientation | Two angled ends may need a precise rotational relationship. | Mark the old hose before it is twisted or cut. |
| Port access | Tight spaces can limit which fitting geometry is practical. | Include a wider photo showing surrounding components. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Heat exposure
A hose routed too close to exhausts, engines or other hot components can age faster and lose flexibility. For a Coleraine breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Contamination at open ports
A burst line can leave open connections exposed. Keeping dirt out while the hose is replaced protects valves, pumps and other components. For a Coleraine breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Wrong or forced fitting
A connection that looks nearly right can still use a different seat or sealing method. Forcing it can damage the port and create a leak that a new hose alone will not solve. For a Coleraine breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Repeated bend at one point
If the same section flexes sharply on every cycle, the hose can fatigue there even when the rest of the assembly appears healthy. For a Coleraine breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Poor support or clamping
A hose with too much uncontrolled movement can whip, rub and work the fitting ends harder than intended. For a Coleraine breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Coleraine breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

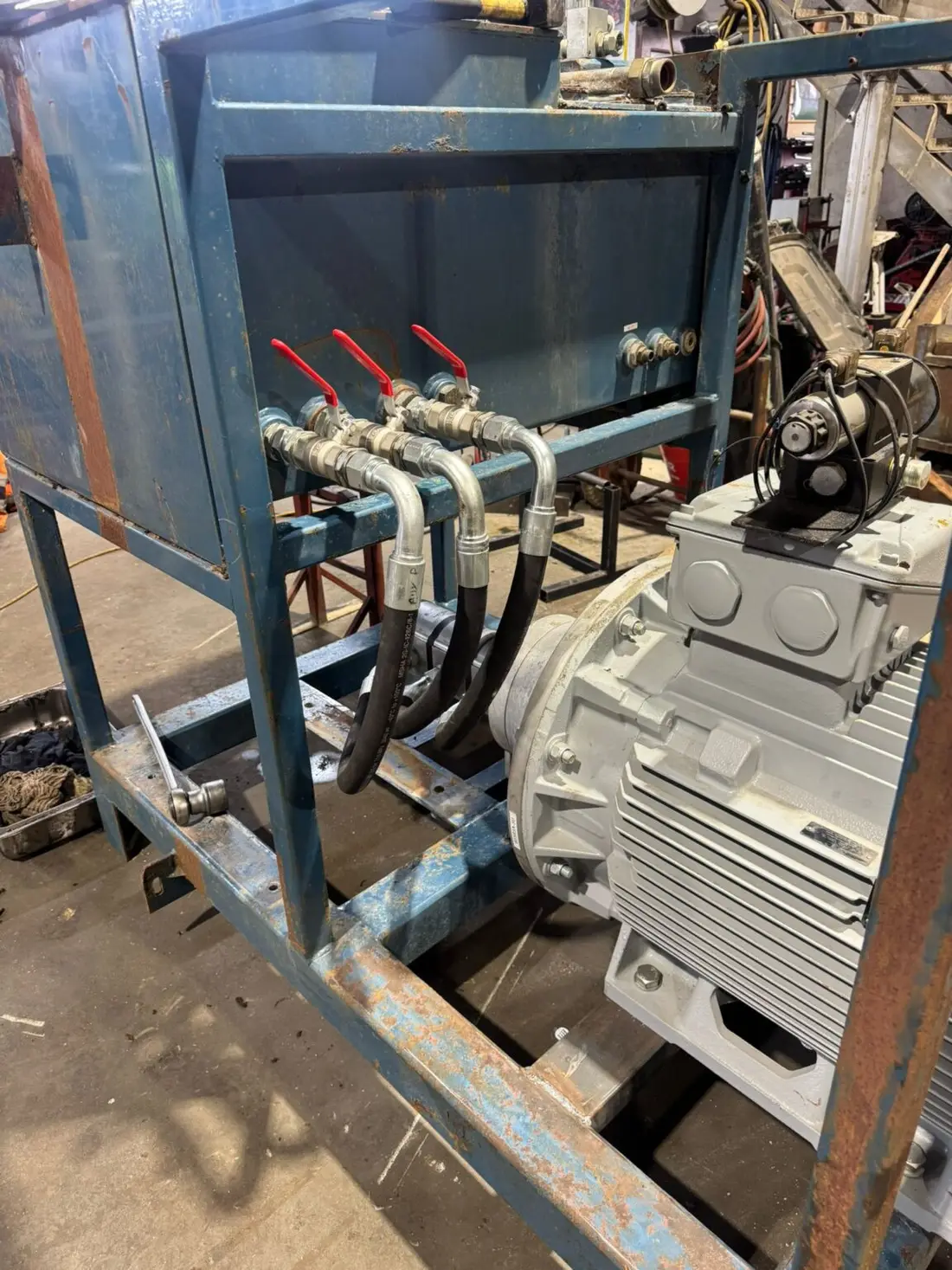

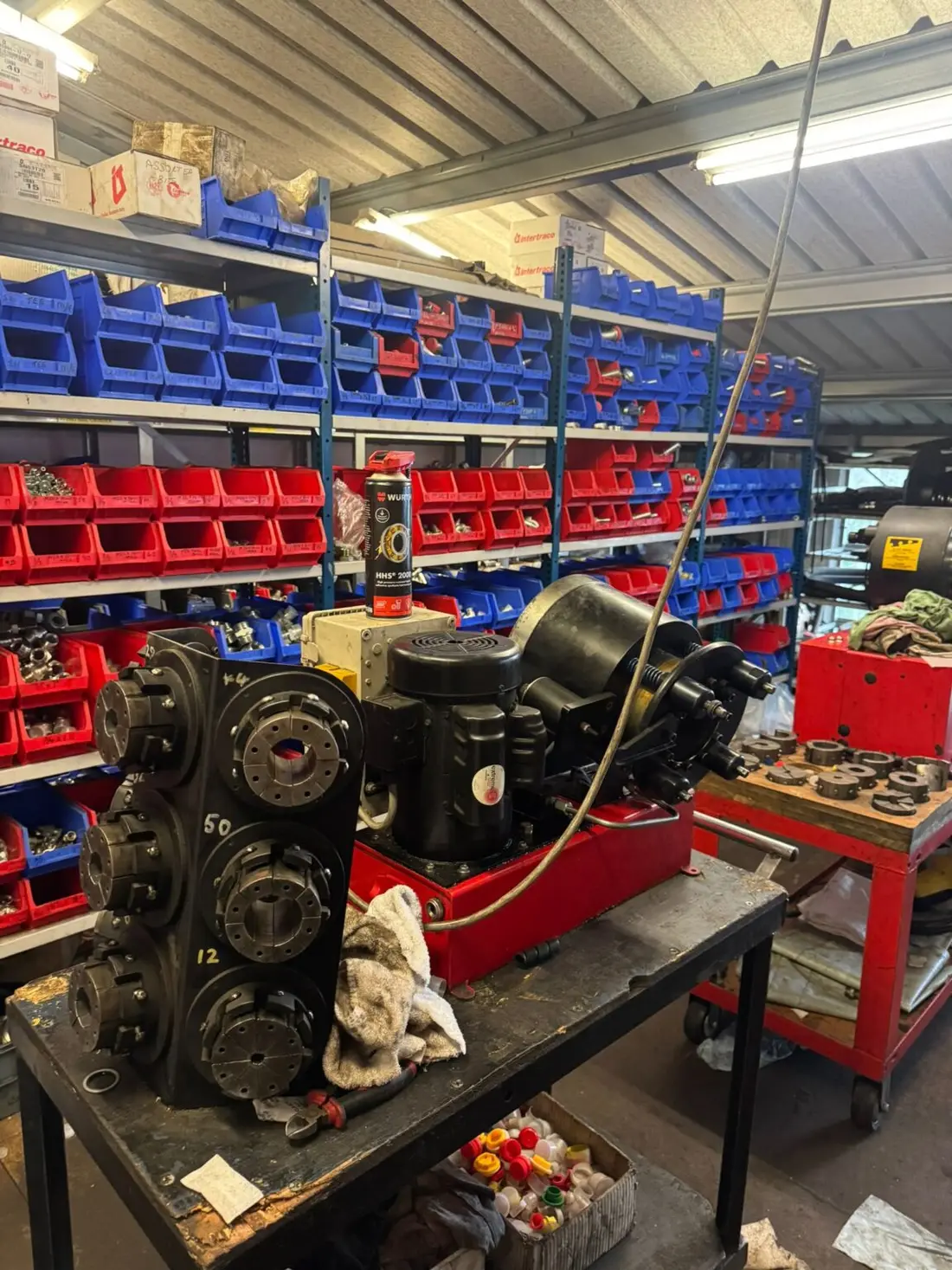

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Coleraine target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Coleraine
The page covers Coleraine and nearby areas including Portstewart, Portrush, Garvagh, Ballymoney and Castlerock. Nearby places include Portstewart, Portrush, Garvagh, Ballymoney and Castlerock.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Coleraine page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Coleraine and whether the machine can be moved safely.
Based in Lavy. Serving Coleraine.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Coleraine and nearby areas where suitable.
Magherafelt BT45 8QD
Coleraine is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Coleraine
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Coleraine?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Coleraine and nearby areas such as Portstewart and Portrush.
What should I send before a hose breakdown visit around Coleraine?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Coleraine?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Coleraine is an area we service, not a separate branch location. This page describes genuine service coverage for Coleraine and surrounding areas; call-out suitability depends on the job and availability.
