Hydraulic Hose Repairs Claudy
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Claudy
What hydraulic hose support in Claudy actually means
For contractors and plant operators around Claudy, the useful question is not whether somebody can make 'a hose'. It is whether the replacement will match the machine’s pressure duty, connection style, overall length and movement without introducing another weak point.
CPR serves Claudy and surrounding areas towards Derry, Dungiven, Feeny and Eglinton. Nearby places such as Derry, Dungiven and Eglinton are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on mobile hydraulic hose support for plant operating beyond easy workshop recovery range. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Claudy, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.
Heavy excavators
For Claudy, this includes large machines where a burst hose can stop an entire site operation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Compact excavators
For Claudy, this includes smaller plant where tight routing makes a few centimetres of hose length significant. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Telehandlers & forklifts
For Claudy, this includes lifting equipment with boom, mast, steering and attachment circuits. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Loaders & shovel plant
For Claudy, this includes repeated lift/tilt cycles that demand durable routing and correct crimped ends. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural equipment
For Claudy, this includes high-use seasonal machinery where downtime quickly becomes expensive. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Ancillary plant
For Claudy, this includes hydraulically powered attachments, presses and specialist machinery. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
Routing, bend and abrasion matter after the new hose is fitted
On larger machinery serving Claudy, the failed line may be a heavy return, suction or high-flow hose with substantial fittings. Those assemblies can be awkward to remove and route, so preserving the original orientation and understanding the available bend space is important.
A hose that is too short can be pulled tight at full articulation. One that is too long can rub, snag or kink. Hose life can also be shortened by twisting, tight bends, clamp points, heat and contact with steel edges. When a hose has failed repeatedly in the same place, the route deserves as much attention as the replacement assembly.
Length and fitting orientation are part of the specification
Two assemblies can use the same hose and the same pair of ends yet still be different if overall length or end orientation changes. That is especially important with 45° and 90° fittings. The safest reference is usually the original assembly, supported by clear photographs of how it sits on the machine.
Applied to Claudy, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Work out what actually failed
A wet fitting, burst body and abrasion spot are different clues. Identify the exact failed assembly before parts are removed. That is especially relevant around Claudy when downtime or machine recovery is difficult.
Protect the open circuit
Once disconnected, keep dirt and debris away from open ports and the new assembly. That is especially relevant around Claudy when downtime or machine recovery is difficult.
Build from a reliable reference
Use the original assembly and machine-side connections to verify the replacement instead of relying on a visual guess. That is especially relevant around Claudy when downtime or machine recovery is difficult.
Check the route under movement
A hose that looks fine parked can tighten or foul when a boom or attachment moves. That is especially relevant around Claudy when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| Connection ID | Correct identification protects the machine port from cross-threading or a mismatched seal. | Do not rely on outside diameter alone. |
| Hose-to-pipe transition | Rigid steel pipe often changes to flexible hose near articulation points. | Show any adapters or unions between pipe and hose. |
| Large flange ends | High-flow circuits may use flange-style connections that need the correct pattern and sealing elements. | Photograph bolt/flange arrangement and old seal location. |
| Couplers and attachments | Auxiliary circuits may terminate at quick couplers or attachment manifolds. | Show both the hose end and what it connects to. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Wrong or forced fitting
A connection that looks nearly right can still use a different seat or sealing method. Forcing it can damage the port and create a leak that a new hose alone will not solve. For a Claudy breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Repeated bend at one point
If the same section flexes sharply on every cycle, the hose can fatigue there even when the rest of the assembly appears healthy. For a Claudy breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Poor support or clamping
A hose with too much uncontrolled movement can whip, rub and work the fitting ends harder than intended. For a Claudy breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Claudy breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Claudy breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Claudy breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

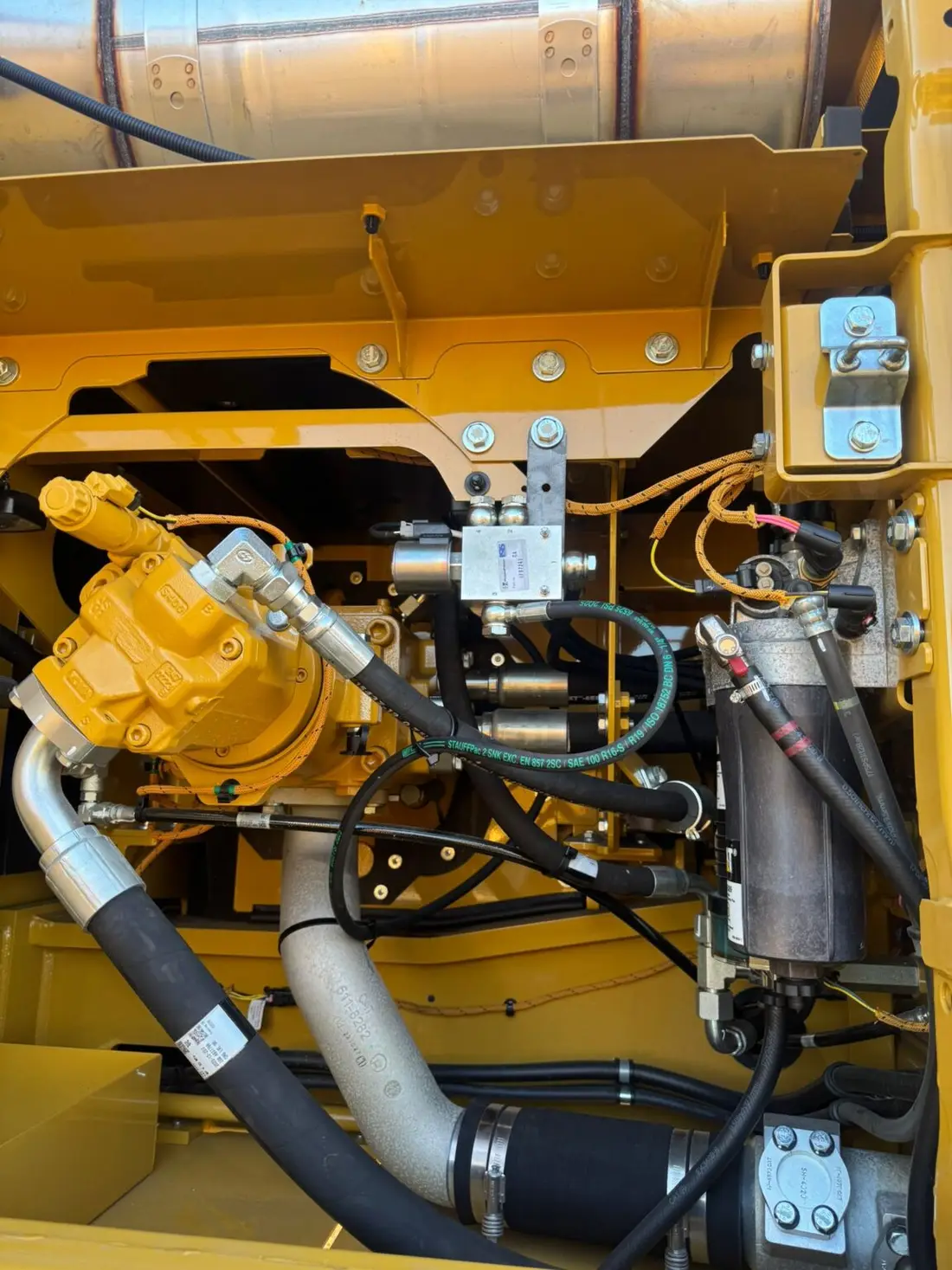

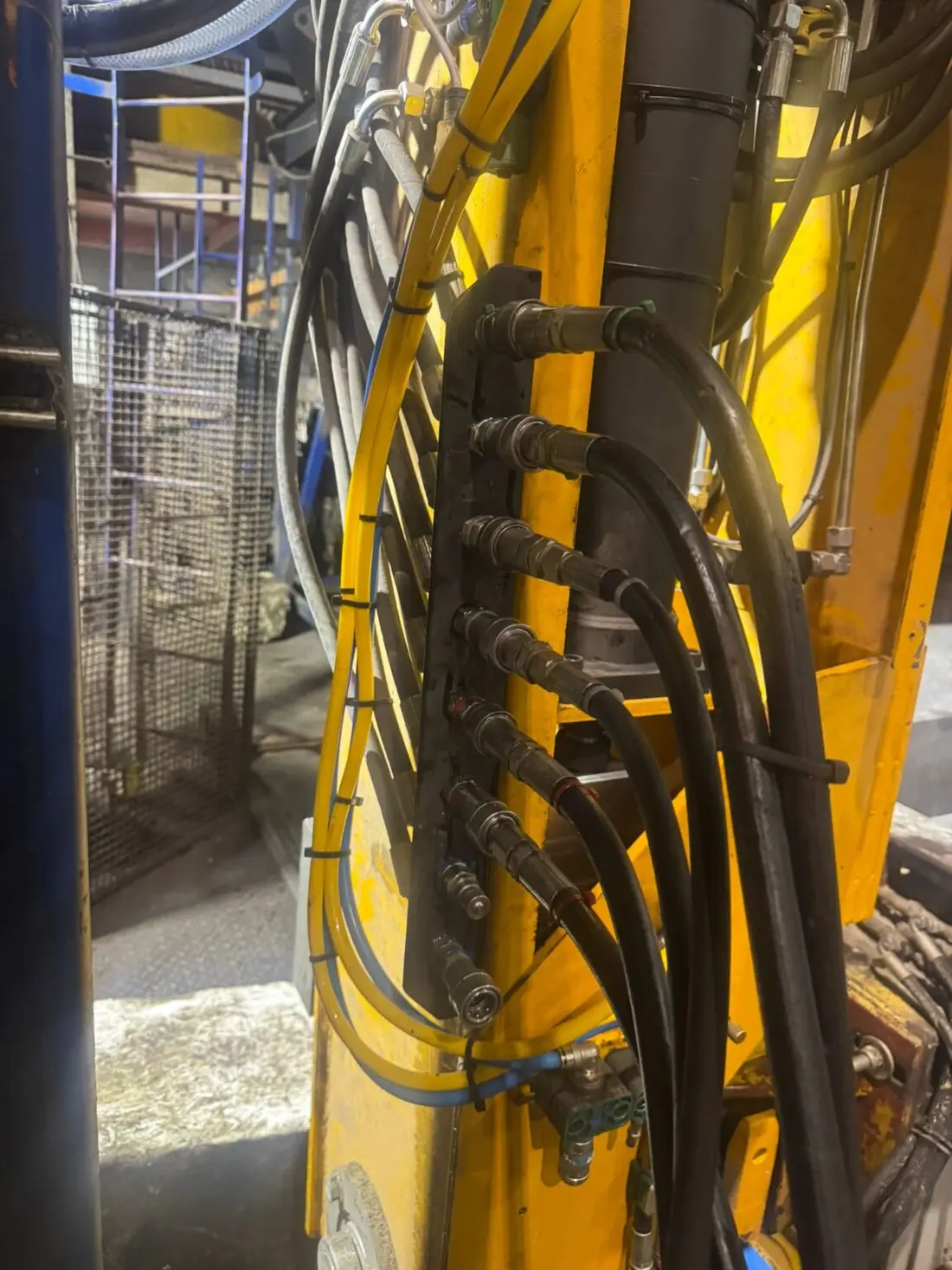

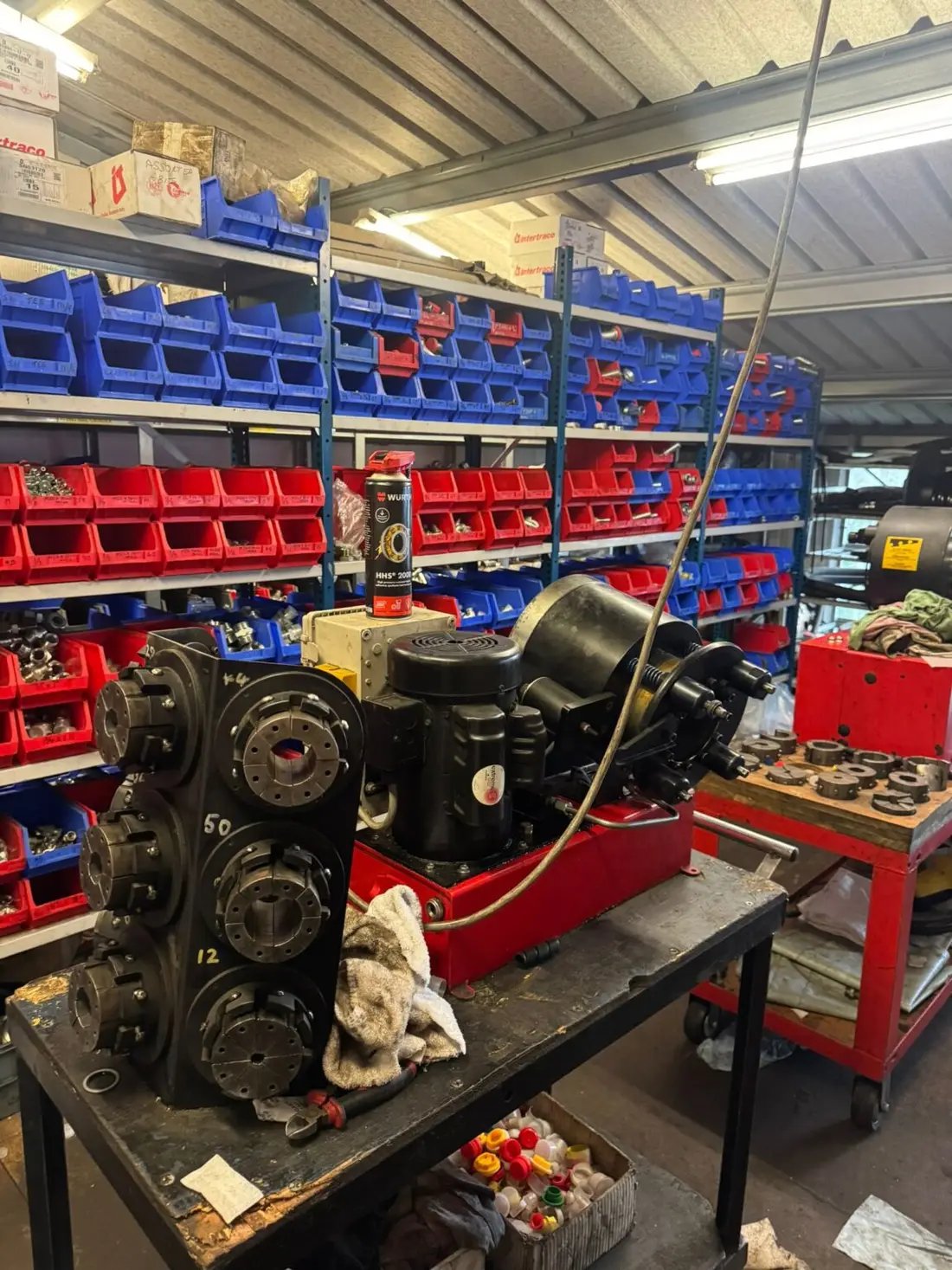

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Claudy target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Claudy
The page covers Claudy and surrounding areas towards Derry, Dungiven, Feeny and Eglinton. Nearby places include Derry, Dungiven, Eglinton, Feeny and Park.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Claudy page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Claudy and whether the machine can be moved safely.
Based in Lavy. Serving Claudy.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Claudy and nearby areas where suitable.
Magherafelt BT45 8QD
Claudy is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Claudy
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Claudy?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Claudy and nearby areas such as Derry and Dungiven.
What should I send before a hose breakdown visit around Claudy?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Claudy?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Claudy is an area we service, not a separate branch location. This page describes genuine service coverage for Claudy and surrounding areas; call-out suitability depends on the job and availability.
