Hydraulic Hose Repairs Kilrea
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Kilrea
What hydraulic hose support in Kilrea actually means
A hydraulic breakdown around Kilrea can be deceptively simple: one failed line, one immobilised machine and a crew waiting for movement to return. The expensive part is rarely the length of hose itself; it is the lost operating time while the correct assembly is identified and made.
CPR serves Kilrea and nearby areas towards Garvagh, Maghera, Portglenone and Rasharkin. Nearby places such as Garvagh, Maghera and Portglenone are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on replacement assemblies for machinery where hose damage, fitting type and routing must be assessed together. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Kilrea, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.
Excavator attachments
For Kilrea, this includes breaker, grab and auxiliary circuits that may use different hose sizes and fitting arrangements. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Boom machinery
For Kilrea, this includes telehandlers and loaders where hoses need enough movement without being allowed to rub or snag. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Digger hydraulics
For Kilrea, this includes bucket, dipper and slew-related lines exposed to site debris and articulation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural plant
For Kilrea, this includes handlers, tractors and implements with quick couplers and mixed connection families. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Commercial machinery
For Kilrea, this includes yard and industrial equipment that depends on reliable hydraulic power. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Custom applications
For Kilrea, this includes bespoke assemblies where original hose, end geometry and machine-side ports are the best references. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
Routing, bend and abrasion matter after the new hose is fitted
Large plant around Kilrea can use several fitting families on the same machine. One circuit may use a cone seat, another a face seal and another a flange. Matching the actual sealing method is more important than finding a fitting that merely seems to screw together.
A hose that is too short can be pulled tight at full articulation. One that is too long can rub, snag or kink. Hose life can also be shortened by twisting, tight bends, clamp points, heat and contact with steel edges. When a hose has failed repeatedly in the same place, the route deserves as much attention as the replacement assembly.
Steel pipework and flexible hose often meet in the same circuit
Many heavy machines combine rigid steel hydraulic pipe with flexible hose at articulation points or where vibration needs to be isolated. CPR’s current hose page also describes bespoke steel hydraulic pipework, so unusual hose-to-pipe transitions and made-to-spec connections are part of the wider hydraulic job rather than an afterthought.
Applied to Kilrea, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Make the machine safe
Secure attachments, isolate stored energy and follow the machine maker’s depressurising procedure before touching the line. That is especially relevant around Kilrea when downtime or machine recovery is difficult.
Capture the evidence
Photograph both ends, hose markings, adapters and the route before dismantling; keep the failed hose intact where practical. That is especially relevant around Kilrea when downtime or machine recovery is difficult.
Match the assembly
Confirm hose family, bore, end style, length and any angular relationship between fittings. That is especially relevant around Kilrea when downtime or machine recovery is difficult.
Refit without creating stress
Check the hose through the machine’s working range so it is not twisted, pulled tight or rubbing. That is especially relevant around Kilrea when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| BSP / JIC / ORFS / Metric-DIN / SAE-style | These families use different threads and sealing arrangements even when they look similar at a glance. | Show both male and female connection faces where possible. |
| Fitting seat condition | A damaged sealing face can continue to leak after a new hose is fitted. | Inspect the machine-side seat, not just the old hose. |
| End orientation | Two angled ends may need a precise rotational relationship. | Mark the old hose before it is twisted or cut. |
| Port access | Tight spaces can limit which fitting geometry is practical. | Include a wider photo showing surrounding components. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
External impact or crush
Debris, attachments, tools and moving structures can damage a hose even when the hydraulic specification itself is correct. For a Kilrea breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Heat exposure
A hose routed too close to exhausts, engines or other hot components can age faster and lose flexibility. For a Kilrea breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Contamination at open ports
A burst line can leave open connections exposed. Keeping dirt out while the hose is replaced protects valves, pumps and other components. For a Kilrea breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Wrong or forced fitting
A connection that looks nearly right can still use a different seat or sealing method. Forcing it can damage the port and create a leak that a new hose alone will not solve. For a Kilrea breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Repeated bend at one point
If the same section flexes sharply on every cycle, the hose can fatigue there even when the rest of the assembly appears healthy. For a Kilrea breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Poor support or clamping
A hose with too much uncontrolled movement can whip, rub and work the fitting ends harder than intended. For a Kilrea breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

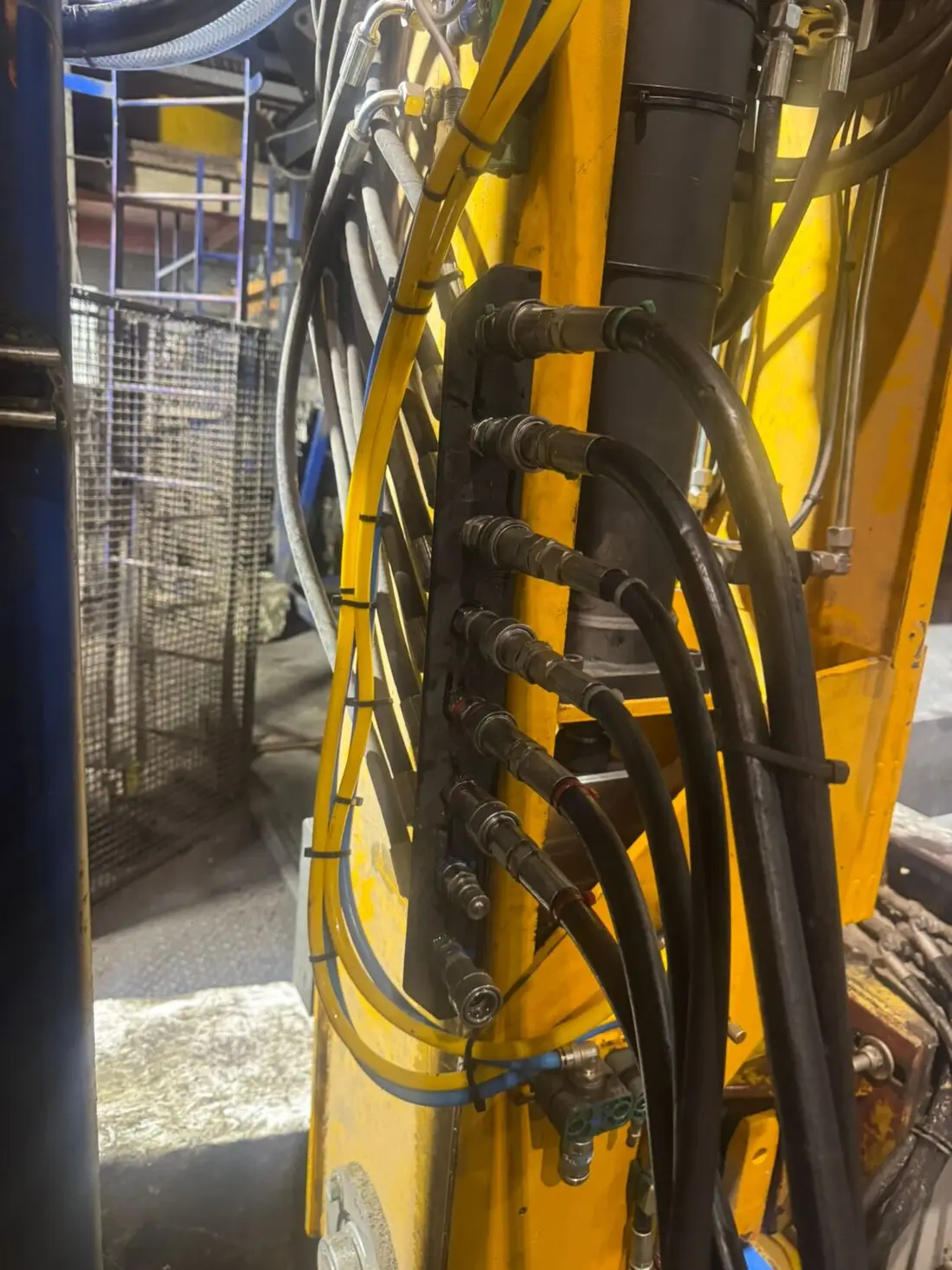

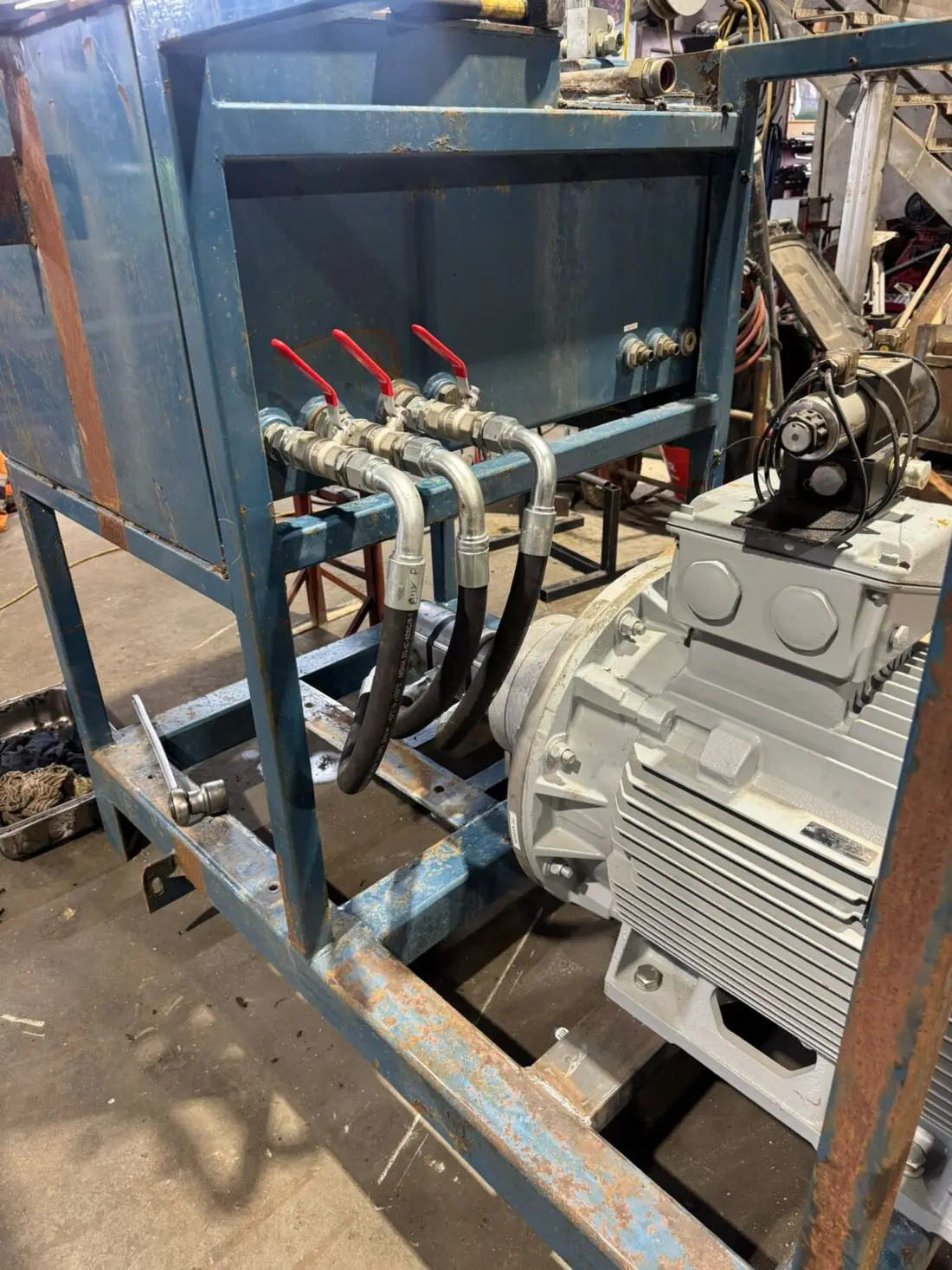

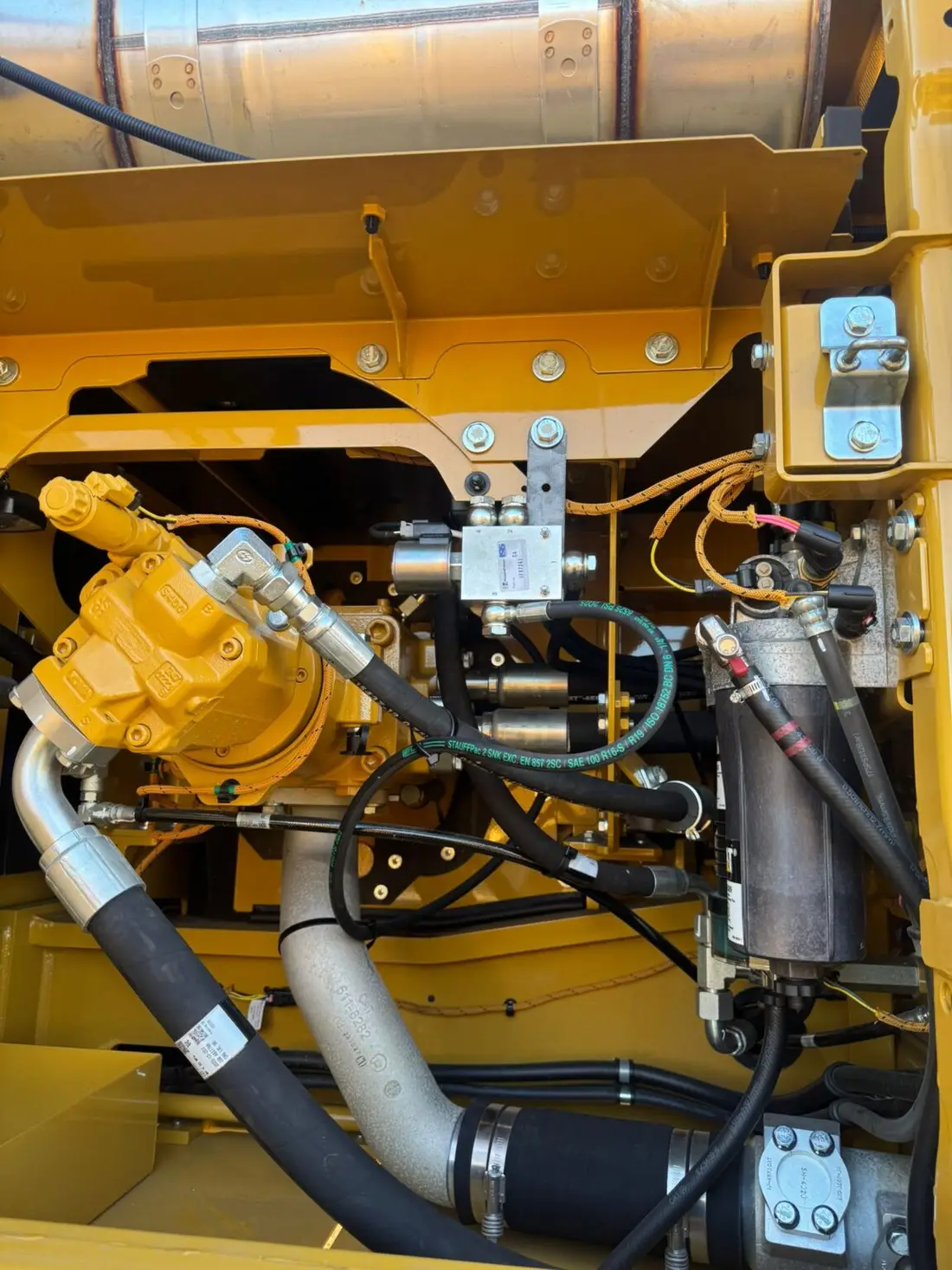

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Kilrea target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Kilrea
The page covers Kilrea and nearby areas towards Garvagh, Maghera, Portglenone and Rasharkin. Nearby places include Garvagh, Maghera, Portglenone, Rasharkin and Swatragh.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Kilrea page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Kilrea and whether the machine can be moved safely.
Based in Lavy. Serving Kilrea.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Kilrea and nearby areas where suitable.
Magherafelt BT45 8QD
Kilrea is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Kilrea
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Kilrea?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Kilrea and nearby areas such as Garvagh and Maghera.
What should I send before a hose breakdown visit around Kilrea?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Kilrea?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Kilrea is an area we service, not a separate branch location. This page describes genuine service coverage for Kilrea and surrounding areas; call-out suitability depends on the job and availability.
