Hydraulic Hose Repairs Castledawson
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Castledawson
What hydraulic hose support in Castledawson actually means
The wider Castledawson service area includes machines working in places where recovery is awkward. A telehandler, excavator or loader with a failed main line may be unable to travel, lower an attachment or complete the movement needed to get itself out of the job.
CPR serves Castledawson, Magherafelt, Bellaghy and nearby sites towards Toome and Maghera. Nearby places such as Magherafelt, Bellaghy and Toome are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on minimising machine downtime with correctly matched hose, ends and orientation. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Castledawson, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.
Tracked excavators
For Castledawson, this includes main boom and auxiliary circuits where abrasion and movement are common failure risks. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Mini diggers
For Castledawson, this includes compact routing spaces that make hose length and fitting angle especially important. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Telehandlers
For Castledawson, this includes long boom movement and attachment circuits that can punish a poorly routed hose. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Loading shovels
For Castledawson, this includes high-flow lift and tilt functions with large fittings and repeated working cycles. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Tractors & loaders
For Castledawson, this includes hydraulic services for loaders, implements and auxiliary equipment. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Specialist plant
For Castledawson, this includes custom machinery and attachments that may need made-to-spec lengths or unusual ends. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
How CPR identifies the failed assembly
For Castledawson, the fastest useful evidence is often a complete picture of the failed assembly before it is disturbed. A close-up of a fitting helps, but a wider view can show whether the apparent hose end is actually threaded into an adapter, a rigid pipe union or a manifold block.
A replacement starts with identification, not guesswork. The useful clues are the hose markings, internal bore, reinforcement family, overall length, end fittings and how the two ends are oriented. On a machine with angled ends, even a correctly sized hose can sit badly if the orientation is wrong. Clear photographs and the removed hose are often the fastest route to a correct match.
Telehandler boom circuits need careful routing
Telehandlers combine long boom movement, attachment circuits and tight routing spaces. Hoses need enough controlled movement without being allowed to rub, twist or snag as the boom extends and retracts. If a hose has failed near a guide, clamp or bend, that location should be considered when the replacement is installed.
Applied to Castledawson, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Stop and isolate
High-pressure oil is dangerous. Shut down and depressurise safely before inspection or removal. That is especially relevant around Castledawson when downtime or machine recovery is difficult.
Record length and orientation
Before the old hose is discarded, note overall length and how angled ends sit relative to one another. That is especially relevant around Castledawson when downtime or machine recovery is difficult.
Identify the connection family
Check the sealing face, thread or flange arrangement and separate machine adapters from the actual hose end. That is especially relevant around Castledawson when downtime or machine recovery is difficult.
Return the machine carefully
Once fitted, inspect routing and connections as hydraulic pressure is restored in line with normal machine procedures. That is especially relevant around Castledawson when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| Thread or flange family | A fitting can be the same apparent size yet use a different thread form or flange pattern. | Photograph the entire end and the machine-side port. |
| Sealing face | Some ends seal on a cone, flat face, O-ring or flange surface rather than on the thread. | Take a straight-on photo of the nose/face of the fitting. |
| Straight / 45° / 90° geometry | The angle determines how the hose leaves the port and whether it clears surrounding steelwork. | Keep the failed assembly in its natural orientation. |
| Adapters | Machine-side adapters can be mistaken for part of the hose fitting. | Photograph the connection before dismantling. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Repeated bend at one point
If the same section flexes sharply on every cycle, the hose can fatigue there even when the rest of the assembly appears healthy. For a Castledawson breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Poor support or clamping
A hose with too much uncontrolled movement can whip, rub and work the fitting ends harder than intended. For a Castledawson breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Castledawson breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Castledawson breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Castledawson breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Pulled tight at full reach
Boom and attachment machinery can hide a length problem until the machine reaches full extension or articulation. For a Castledawson breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

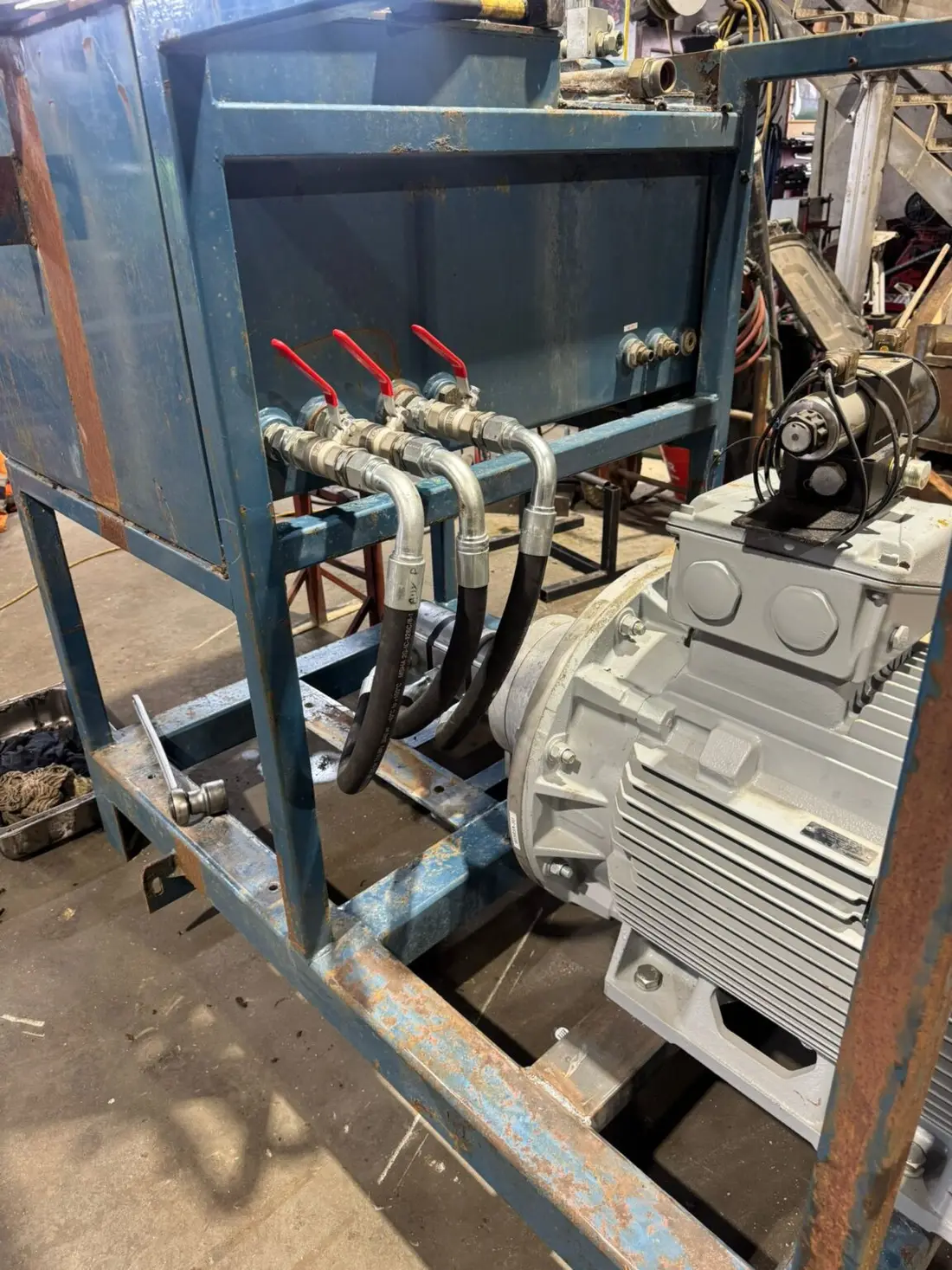

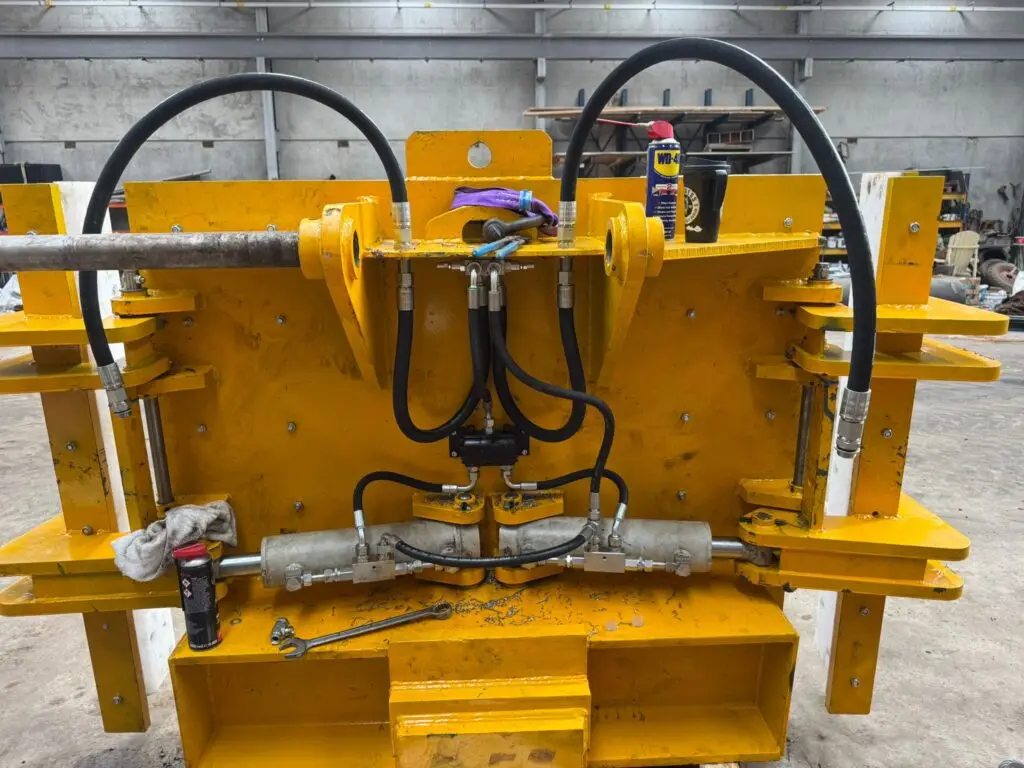

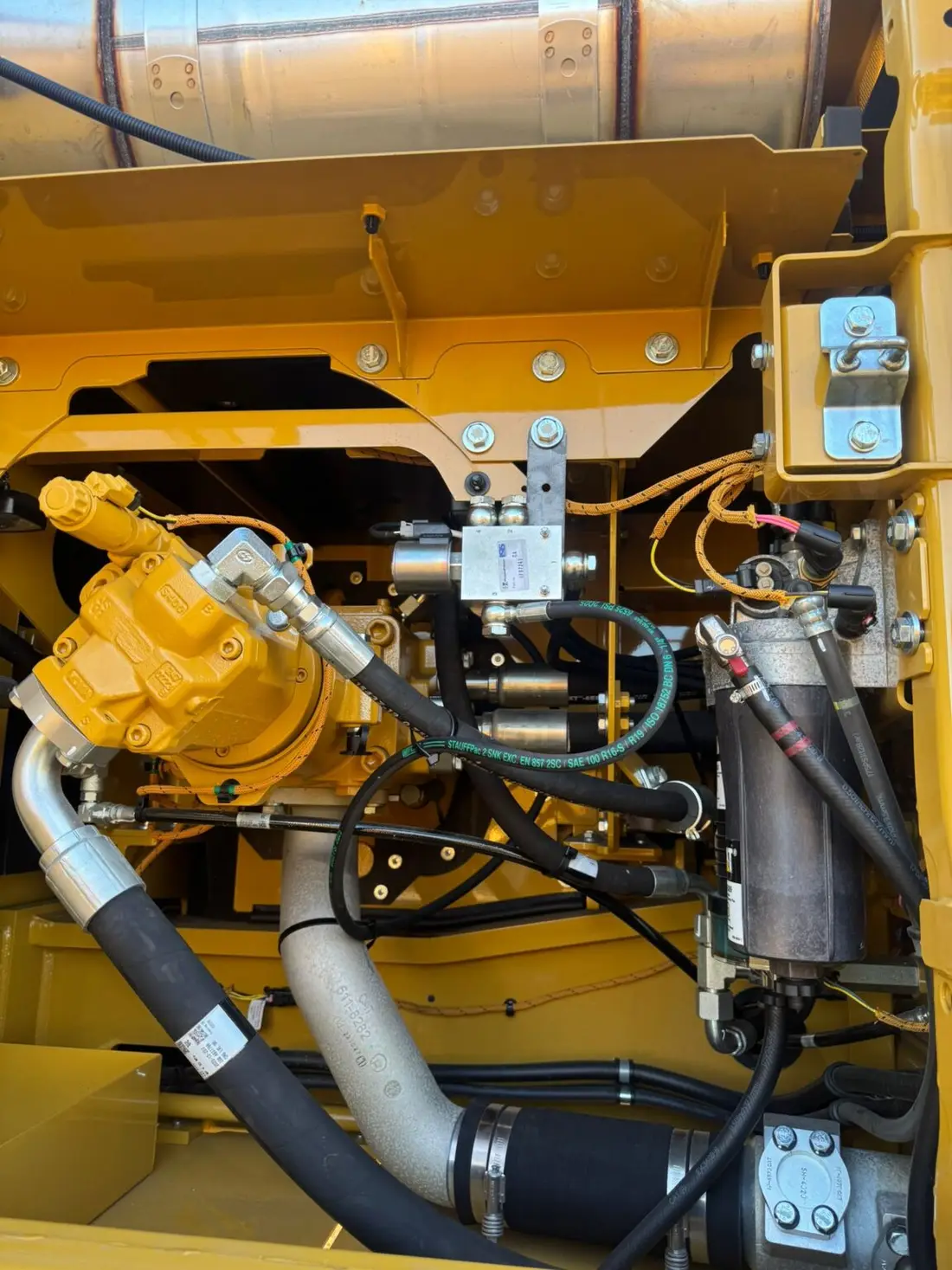

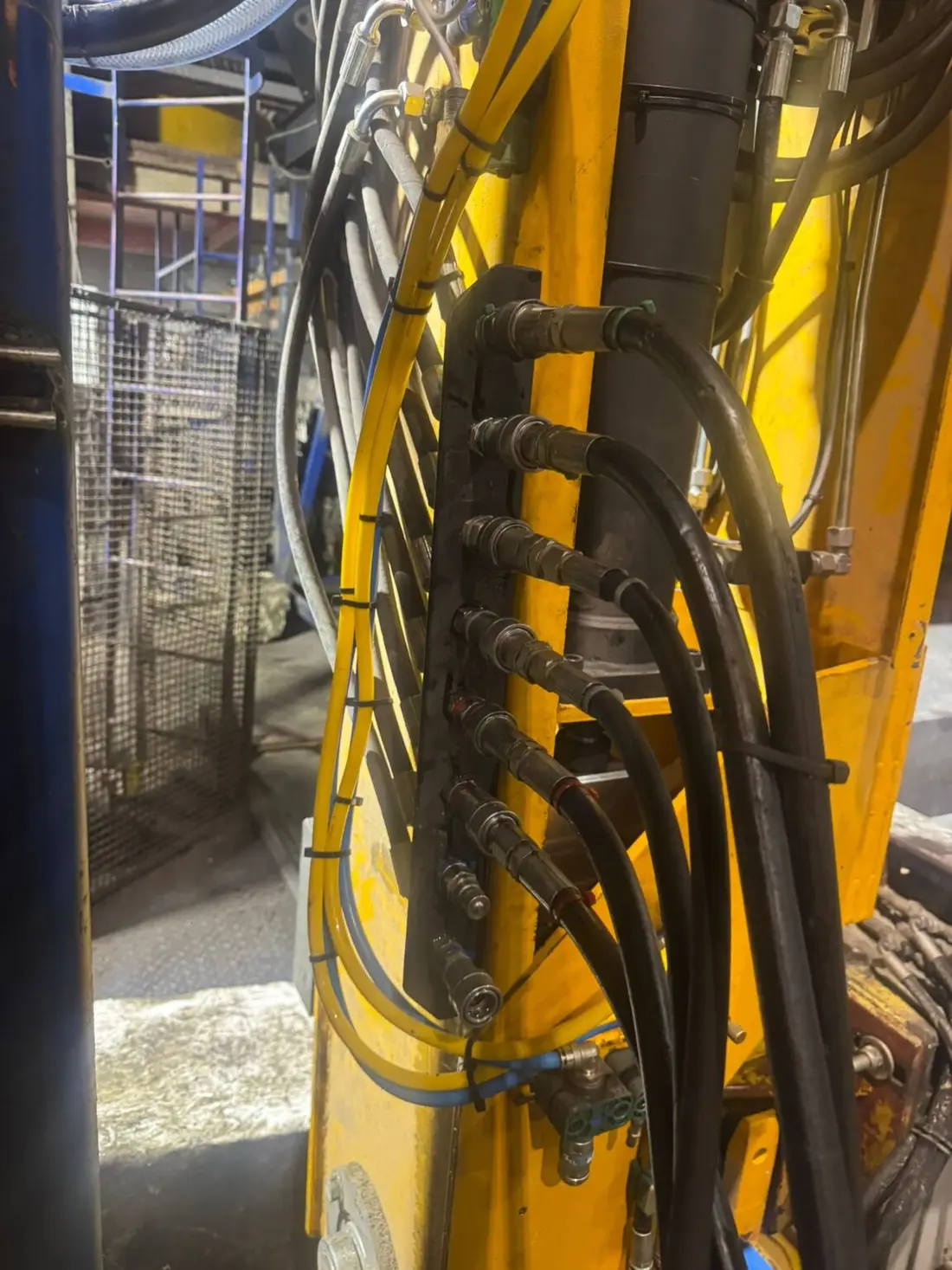

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Castledawson target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Castledawson
The page covers Castledawson, Magherafelt, Bellaghy and nearby sites towards Toome and Maghera. Nearby places include Magherafelt, Bellaghy, Toome, Maghera and Knockloughrim.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Castledawson page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Castledawson and whether the machine can be moved safely.
Based in Lavy. Serving Castledawson.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Castledawson and nearby areas where suitable.
Magherafelt BT45 8QD
Castledawson is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Castledawson
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Castledawson?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Castledawson and nearby areas such as Magherafelt and Bellaghy.
What should I send before a hose breakdown visit around Castledawson?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Castledawson?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Castledawson is an area we service, not a separate branch location. This page describes genuine service coverage for Castledawson and surrounding areas; call-out suitability depends on the job and availability.
