Hydraulic Hose Repairs Magherafelt
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Magherafelt
What hydraulic hose support in Magherafelt actually means
A hydraulic breakdown around Magherafelt can be deceptively simple: one failed line, one immobilised machine and a crew waiting for movement to return. The expensive part is rarely the length of hose itself; it is the lost operating time while the correct assembly is identified and made.
CPR serves the Magherafelt area and surrounding Mid Ulster road network. Nearby places such as Knockloughrim, Bellaghy and Castledawson are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on workshop access and rapid identification of failed heavy-plant hose assemblies. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Magherafelt, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.

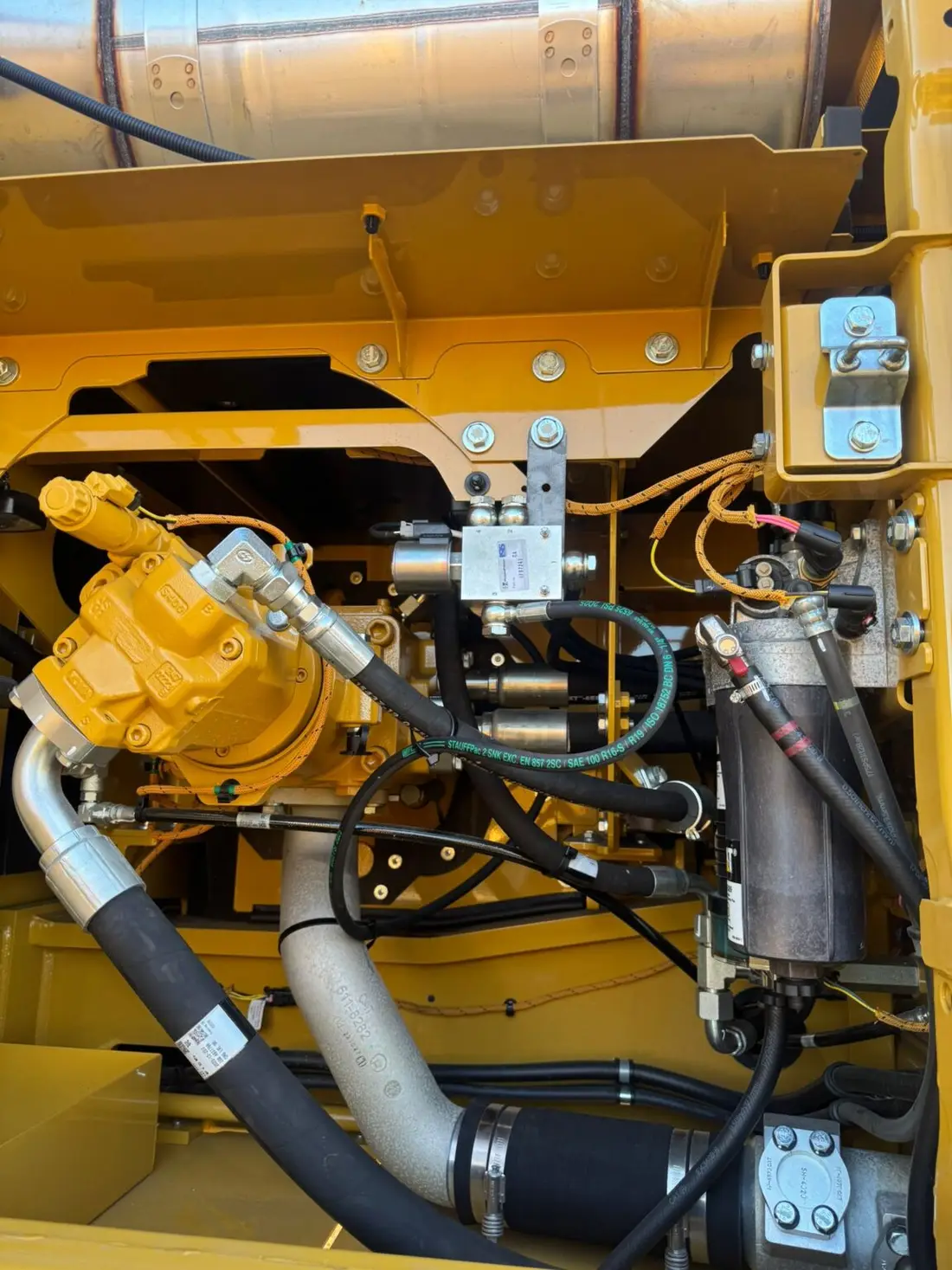

Excavators & diggers
For Magherafelt, this includes boom, dipper, bucket and auxiliary hose circuits that flex through constant articulation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Telehandlers
For Magherafelt, this includes boom-extension and attachment lines where controlled movement and end orientation are critical. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Wheel loaders
For Magherafelt, this includes lift, tilt and auxiliary hoses exposed around loader arms and couplers. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Dumpers
For Magherafelt, this includes tipping and steering circuits on site machinery. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural handlers
For Magherafelt, this includes loader, steering and implement hydraulics working in dirty conditions. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Attachments
For Magherafelt, this includes breakers, grabs and powered tools that rely on correctly matched auxiliary hoses. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
How CPR identifies the failed assembly
For Magherafelt, the fastest useful evidence is often a complete picture of the failed assembly before it is disturbed. A close-up of a fitting helps, but a wider view can show whether the apparent hose end is actually threaded into an adapter, a rigid pipe union or a manifold block.
A replacement starts with identification, not guesswork. The useful clues are the hose markings, internal bore, reinforcement family, overall length, end fittings and how the two ends are oriented. On a machine with angled ends, even a correctly sized hose can sit badly if the orientation is wrong. Clear photographs and the removed hose are often the fastest route to a correct match.
BSP, JIC, ORFS, Metric/DIN and flange-style ends
Heavy plant uses multiple connection families. A thread can look close and still be wrong because the sealing method may be different. CPR works with hose ends, fittings and made-to-spec connections, so the job is to identify the actual seat, thread or flange arrangement rather than forcing a near match. That matters for sealing, reliability and avoiding damage to the machine-side port.
Applied to Magherafelt, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Make the machine safe
Secure attachments, isolate stored energy and follow the machine maker’s depressurising procedure before touching the line. That is especially relevant around Magherafelt when downtime or machine recovery is difficult.
Capture the evidence
Photograph both ends, hose markings, adapters and the route before dismantling; keep the failed hose intact where practical. That is especially relevant around Magherafelt when downtime or machine recovery is difficult.
Match the assembly
Confirm hose family, bore, end style, length and any angular relationship between fittings. That is especially relevant around Magherafelt when downtime or machine recovery is difficult.
Refit without creating stress
Check the hose through the machine’s working range so it is not twisted, pulled tight or rubbing. That is especially relevant around Magherafelt when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| Thread or flange family | A fitting can be the same apparent size yet use a different thread form or flange pattern. | Photograph the entire end and the machine-side port. |
| Sealing face | Some ends seal on a cone, flat face, O-ring or flange surface rather than on the thread. | Take a straight-on photo of the nose/face of the fitting. |
| Straight / 45° / 90° geometry | The angle determines how the hose leaves the port and whether it clears surrounding steelwork. | Keep the failed assembly in its natural orientation. |
| Adapters | Machine-side adapters can be mistaken for part of the hose fitting. | Photograph the connection before dismantling. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Magherafelt breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Magherafelt breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Magherafelt breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Pulled tight at full reach
Boom and attachment machinery can hide a length problem until the machine reaches full extension or articulation. For a Magherafelt breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
External impact or crush
Debris, attachments, tools and moving structures can damage a hose even when the hydraulic specification itself is correct. For a Magherafelt breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Heat exposure
A hose routed too close to exhausts, engines or other hot components can age faster and lose flexibility. For a Magherafelt breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

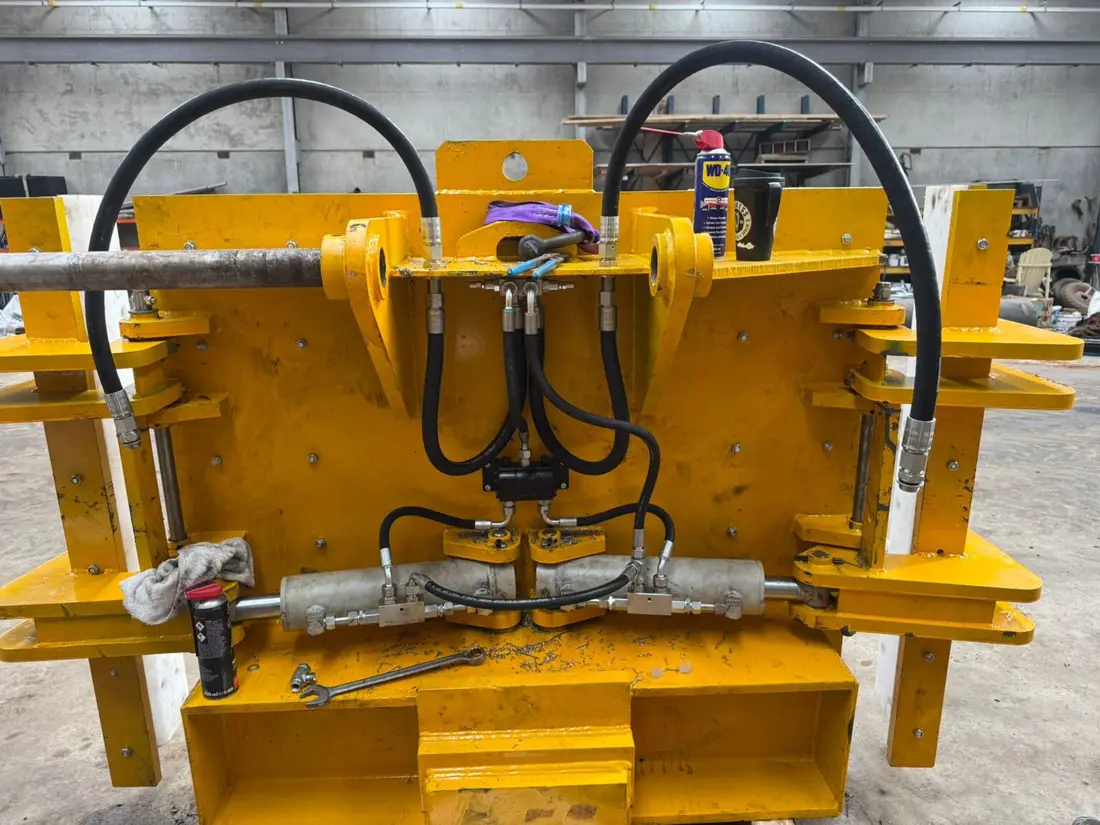

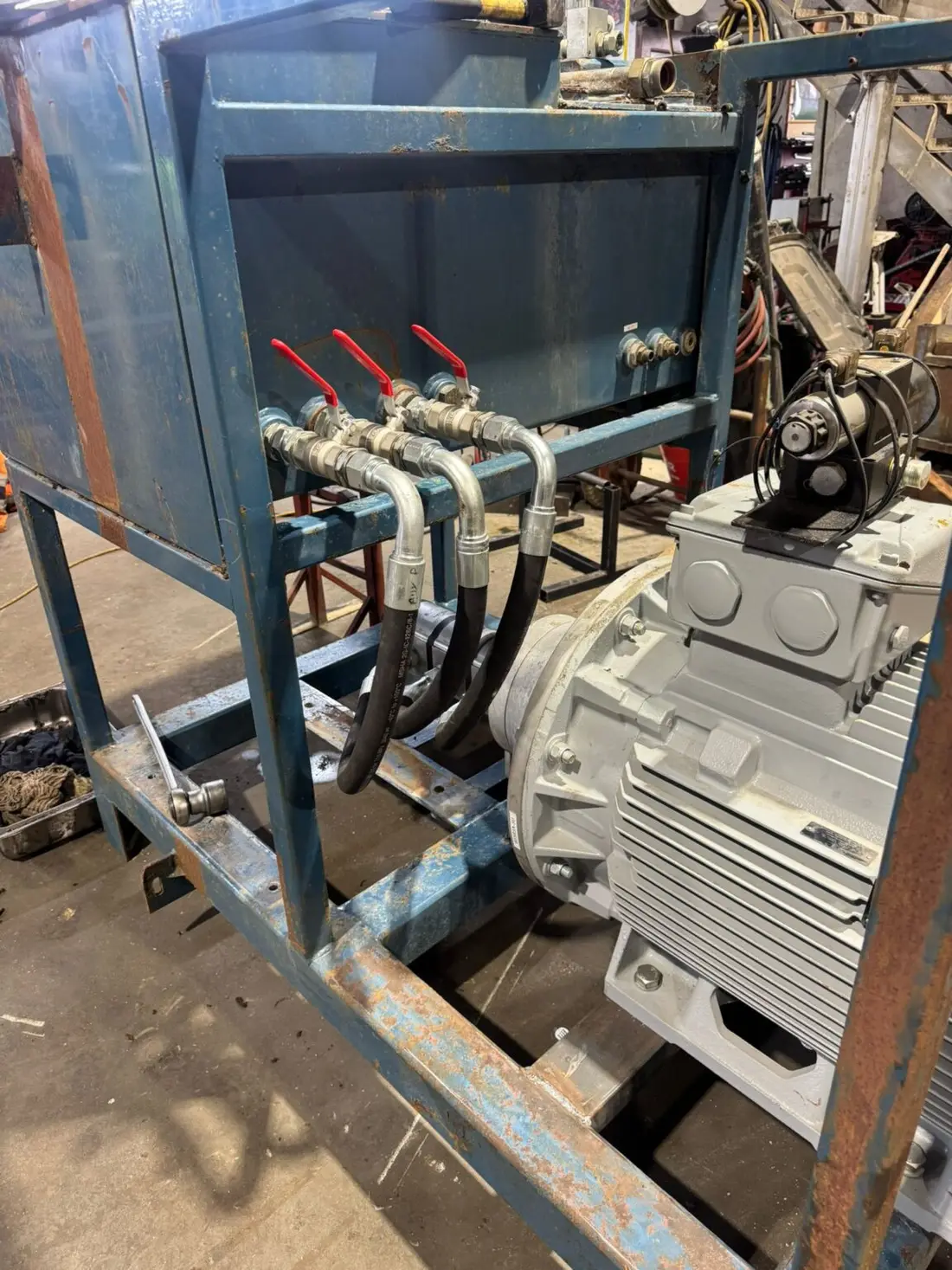

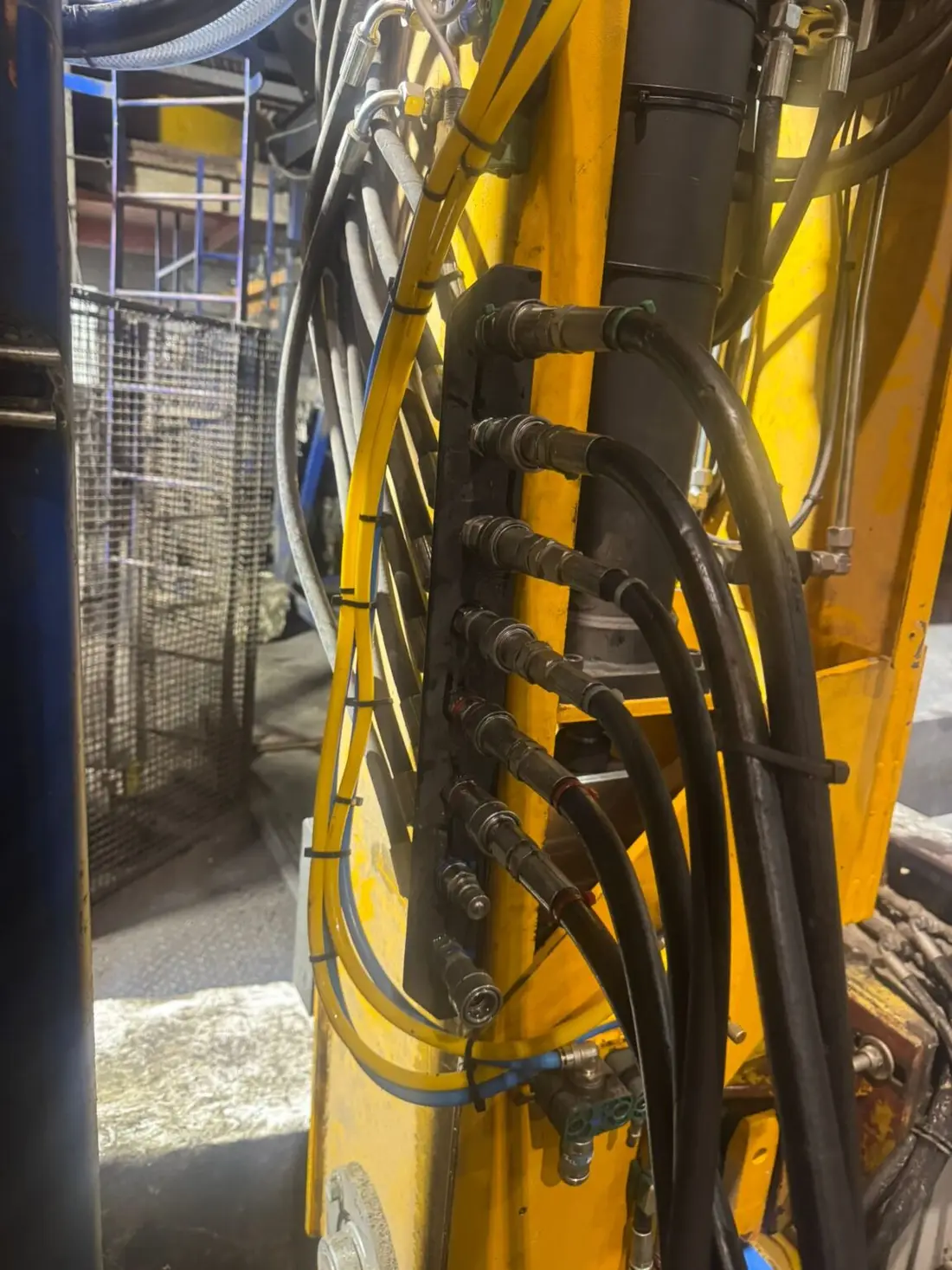

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Magherafelt target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Magherafelt
The page covers the Magherafelt area and surrounding Mid Ulster road network. Nearby places include Knockloughrim, Bellaghy, Castledawson, Moneymore and Toome.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Magherafelt page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Magherafelt and whether the machine can be moved safely.
Based in Lavy. Serving Magherafelt.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, providing workshop support and mobile hydraulic hose call-out support across Magherafelt and the wider Mid Ulster area where suitable.
Magherafelt BT45 8QD
Magherafelt is our home service area. The map shows the actual CPR Hydraulics operating base.
Hydraulic hose repair questions in Magherafelt
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Magherafelt?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Magherafelt and nearby areas such as Knockloughrim and Bellaghy.
What should I send before a hose breakdown visit around Magherafelt?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Magherafelt?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Magherafelt is an area we service, not a separate branch location. This page describes genuine service coverage for Magherafelt and surrounding areas; call-out suitability depends on the job and availability.
