Hydraulic Hose Repairs Maghera
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Maghera
What hydraulic hose support in Maghera actually means
Hydraulic hose work around Maghera ranges from straightforward removed assemblies to awkward failures buried inside a boom, behind guards or between rigid pipe sections. The more accurately the old hose and machine connections are recorded, the quicker a suitable replacement can be established.
CPR serves Maghera and surrounding routes towards Kilrea, Garvagh, Draperstown and Castledawson. Nearby places such as Swatragh, Kilrea and Garvagh are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on hose replacement for machinery working across mixed rural, construction and quarry-style environments. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Maghera, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.
Excavator attachments
For Maghera, this includes breaker, grab and auxiliary circuits that may use different hose sizes and fitting arrangements. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Boom machinery
For Maghera, this includes telehandlers and loaders where hoses need enough movement without being allowed to rub or snag. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Digger hydraulics
For Maghera, this includes bucket, dipper and slew-related lines exposed to site debris and articulation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural plant
For Maghera, this includes handlers, tractors and implements with quick couplers and mixed connection families. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Commercial machinery
For Maghera, this includes yard and industrial equipment that depends on reliable hydraulic power. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Custom applications
For Maghera, this includes bespoke assemblies where original hose, end geometry and machine-side ports are the best references. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
How CPR identifies the failed assembly
A burst hose around Maghera can leave ports open in dirty site or farm conditions. Protecting those connections while the hose is away prevents soil, grit and metal debris from turning a simple hose replacement into a valve, pump or spool problem.
A replacement starts with identification, not guesswork. The useful clues are the hose markings, internal bore, reinforcement family, overall length, end fittings and how the two ends are oriented. On a machine with angled ends, even a correctly sized hose can sit badly if the orientation is wrong. Clear photographs and the removed hose are often the fastest route to a correct match.
The failure point tells you something
A leak at the crimp, a burst in the hose body, exposed reinforcement, abrasion through the cover and damage next to the fitting are different failure patterns. Replacing the hose is the immediate job, but the pattern can also point to routing, movement, age, contamination or mechanical damage that should be checked before the machine returns to work.
Applied to Maghera, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Decide workshop or call-out
If the hose can be removed safely, workshop manufacture may be fastest; an immobilised machine may justify mobile support. That is especially relevant around Maghera when downtime or machine recovery is difficult.
Send useful photos
A close-up of each fitting plus one wider photo of the hose route can save unnecessary guessing. That is especially relevant around Maghera when downtime or machine recovery is difficult.
Make the replacement to suit the circuit
Pressure capability, bore, ends and crimp must belong together as a compatible assembly. That is especially relevant around Maghera when downtime or machine recovery is difficult.
Look for the reason it failed
Abrasion, twist, heat, impact or poor routing should be corrected where possible before the new hose is put back to work. That is especially relevant around Maghera when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| Thread or flange family | A fitting can be the same apparent size yet use a different thread form or flange pattern. | Photograph the entire end and the machine-side port. |
| Sealing face | Some ends seal on a cone, flat face, O-ring or flange surface rather than on the thread. | Take a straight-on photo of the nose/face of the fitting. |
| Straight / 45° / 90° geometry | The angle determines how the hose leaves the port and whether it clears surrounding steelwork. | Keep the failed assembly in its natural orientation. |
| Adapters | Machine-side adapters can be mistaken for part of the hose fitting. | Photograph the connection before dismantling. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Poor support or clamping
A hose with too much uncontrolled movement can whip, rub and work the fitting ends harder than intended. For a Maghera breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Maghera breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Maghera breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Maghera breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Pulled tight at full reach
Boom and attachment machinery can hide a length problem until the machine reaches full extension or articulation. For a Maghera breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
External impact or crush
Debris, attachments, tools and moving structures can damage a hose even when the hydraulic specification itself is correct. For a Maghera breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

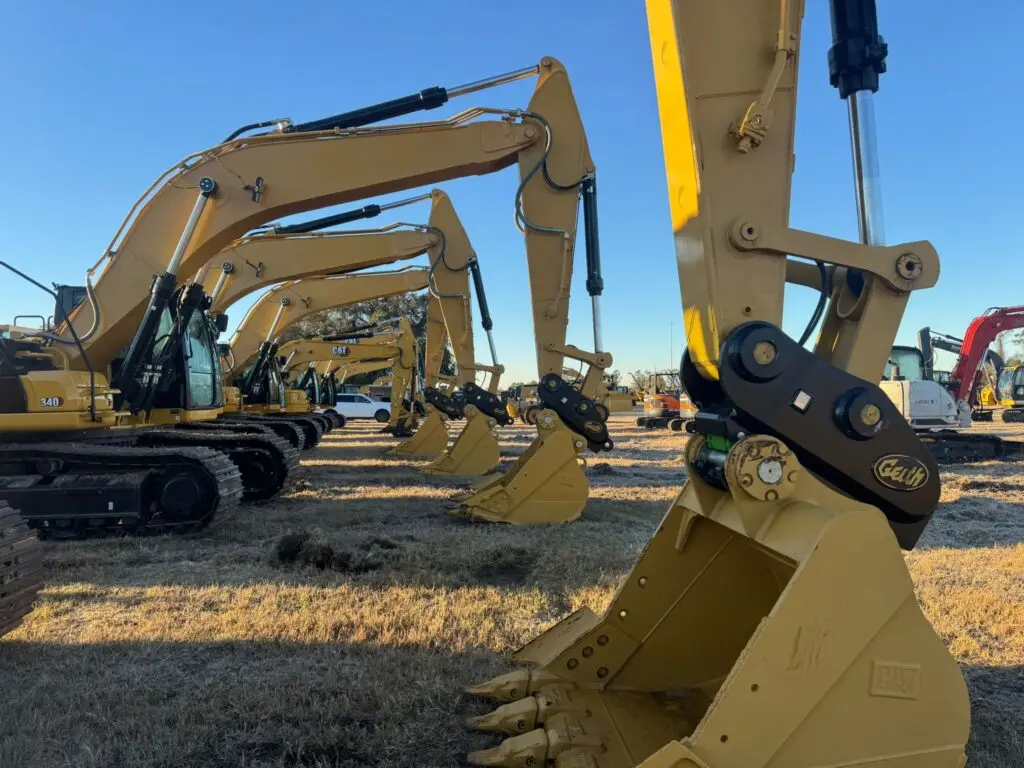

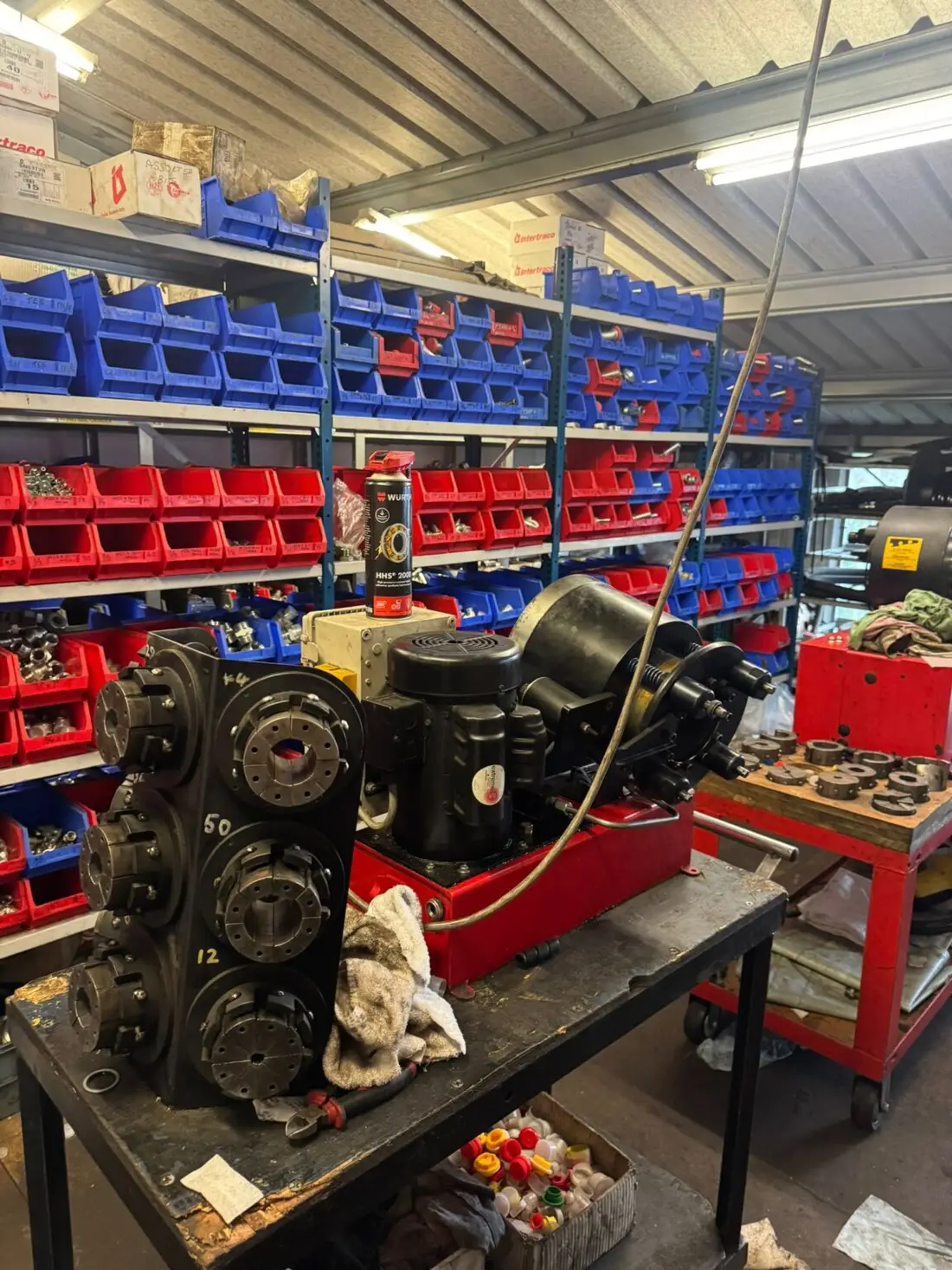

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Maghera target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Maghera
The page covers Maghera and surrounding routes towards Kilrea, Garvagh, Draperstown and Castledawson. Nearby places include Swatragh, Kilrea, Garvagh, Draperstown and Castledawson.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Maghera page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Maghera and whether the machine can be moved safely.
Based in Lavy. Serving Maghera.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Maghera and nearby areas where suitable.
Magherafelt BT45 8QD
Maghera is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Maghera
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Maghera?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Maghera and nearby areas such as Swatragh and Kilrea.
What should I send before a hose breakdown visit around Maghera?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Maghera?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Maghera is an area we service, not a separate branch location. This page describes genuine service coverage for Maghera and surrounding areas; call-out suitability depends on the job and availability.
