Hydraulic Hose Repairs Draperstown
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Draperstown
What hydraulic hose support in Draperstown actually means
Hydraulic hose work around Draperstown ranges from straightforward removed assemblies to awkward failures buried inside a boom, behind guards or between rigid pipe sections. The more accurately the old hose and machine connections are recorded, the quicker a suitable replacement can be established.
CPR serves Draperstown and surrounding Sperrins-side rural locations. Nearby places such as Magherafelt, Maghera and Moneymore are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on mobile support for plant that is awkward to transport after a hose failure. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Draperstown, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.

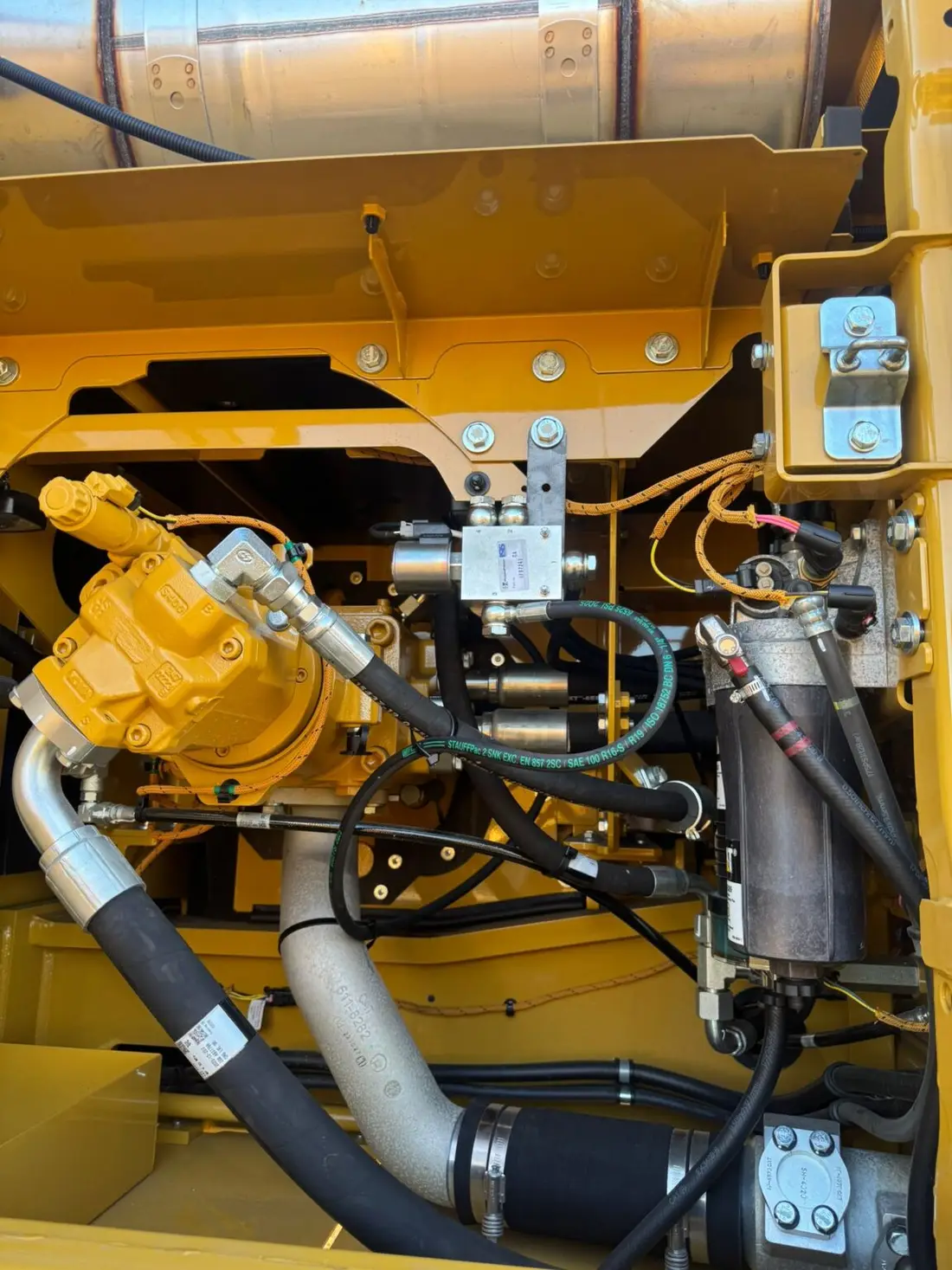

Earthmoving plant
For Draperstown, this includes excavators and diggers using pressure, return, pilot and attachment lines. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Material handlers
For Draperstown, this includes telehandlers and loaders with moving booms and changing hose geometry. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Site transport
For Draperstown, this includes dumpers and similar plant using hydraulic tipping and steering functions. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Quarry-style equipment
For Draperstown, this includes heavy machinery where large-bore and high-flow hose work can be common. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Farm machinery
For Draperstown, this includes tractors, handlers and implements operating in abrasive, contaminated environments. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Workshop equipment
For Draperstown, this includes hydraulic machinery where rigid pipe and flexible hose often meet in the same circuit. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
How CPR identifies the failed assembly
When plant is stopped around Draperstown, recovery cost can exceed the hose job itself. If the machine cannot lower, steer, tip or travel safely, a mobile response may be more sensible than arranging transport. If the hose is accessible and removable, workshop manufacture can be the cleaner route.
A replacement starts with identification, not guesswork. The useful clues are the hose markings, internal bore, reinforcement family, overall length, end fittings and how the two ends are oriented. On a machine with angled ends, even a correctly sized hose can sit badly if the orientation is wrong. Clear photographs and the removed hose are often the fastest route to a correct match.
Agricultural hydraulics often mix machine and implement connections
Tractors, loaders, handlers and implements can use a mix of fixed hose assemblies, quick couplers and auxiliary circuits. Dirt, movement and seasonal workloads can be hard on hoses. Keeping the removed assembly and showing the machine-side connection helps avoid confusion where several visually similar fittings are in use.
Applied to Draperstown, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Decide workshop or call-out
If the hose can be removed safely, workshop manufacture may be fastest; an immobilised machine may justify mobile support. That is especially relevant around Draperstown when downtime or machine recovery is difficult.
Send useful photos
A close-up of each fitting plus one wider photo of the hose route can save unnecessary guessing. That is especially relevant around Draperstown when downtime or machine recovery is difficult.
Make the replacement to suit the circuit
Pressure capability, bore, ends and crimp must belong together as a compatible assembly. That is especially relevant around Draperstown when downtime or machine recovery is difficult.
Look for the reason it failed
Abrasion, twist, heat, impact or poor routing should be corrected where possible before the new hose is put back to work. That is especially relevant around Draperstown when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| BSP / JIC / ORFS / Metric-DIN / SAE-style | These families use different threads and sealing arrangements even when they look similar at a glance. | Show both male and female connection faces where possible. |
| Fitting seat condition | A damaged sealing face can continue to leak after a new hose is fitted. | Inspect the machine-side seat, not just the old hose. |
| End orientation | Two angled ends may need a precise rotational relationship. | Mark the old hose before it is twisted or cut. |
| Port access | Tight spaces can limit which fitting geometry is practical. | Include a wider photo showing surrounding components. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Draperstown breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Draperstown breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Pulled tight at full reach
Boom and attachment machinery can hide a length problem until the machine reaches full extension or articulation. For a Draperstown breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
External impact or crush
Debris, attachments, tools and moving structures can damage a hose even when the hydraulic specification itself is correct. For a Draperstown breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Heat exposure
A hose routed too close to exhausts, engines or other hot components can age faster and lose flexibility. For a Draperstown breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Contamination at open ports
A burst line can leave open connections exposed. Keeping dirt out while the hose is replaced protects valves, pumps and other components. For a Draperstown breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

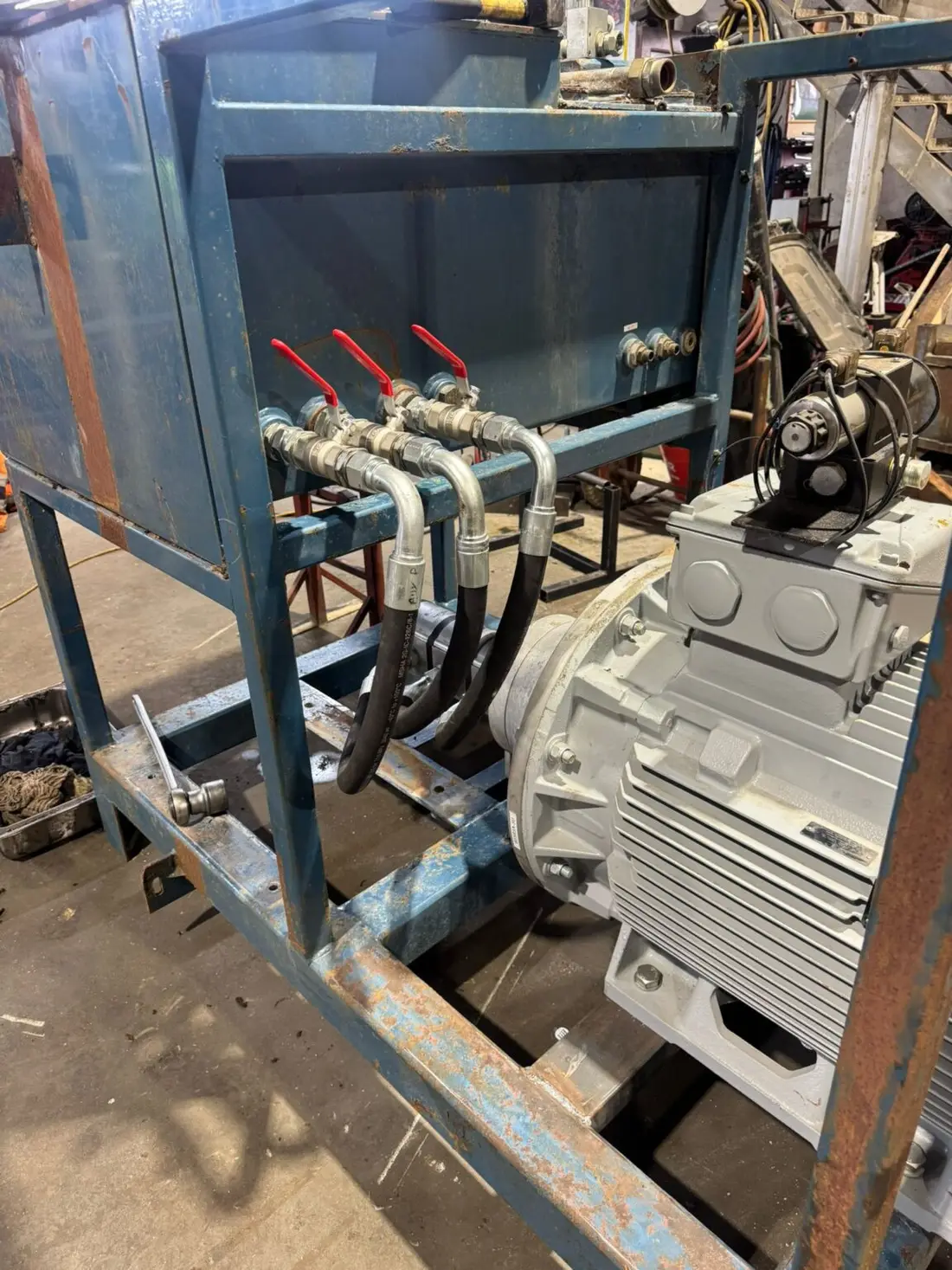

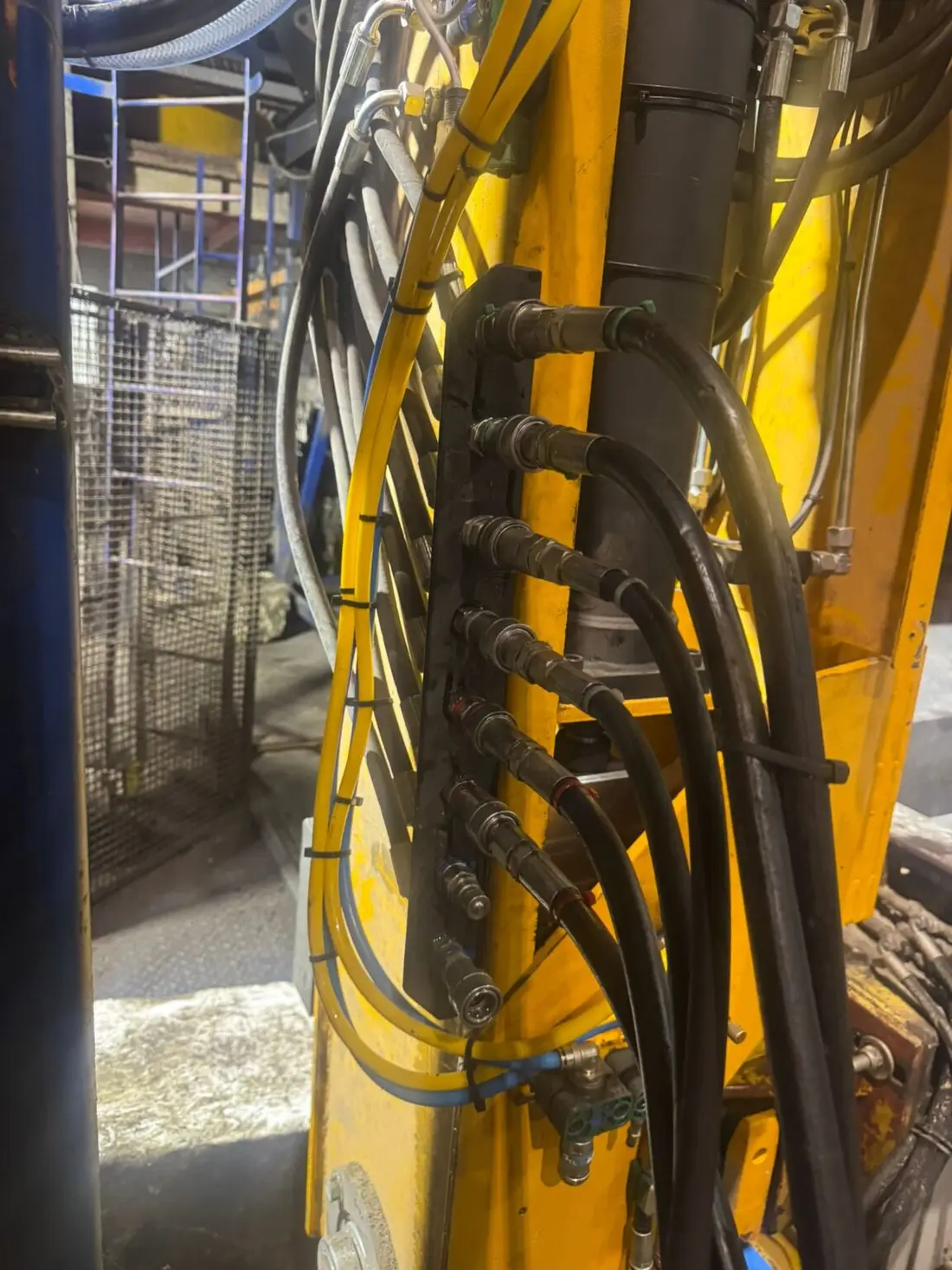

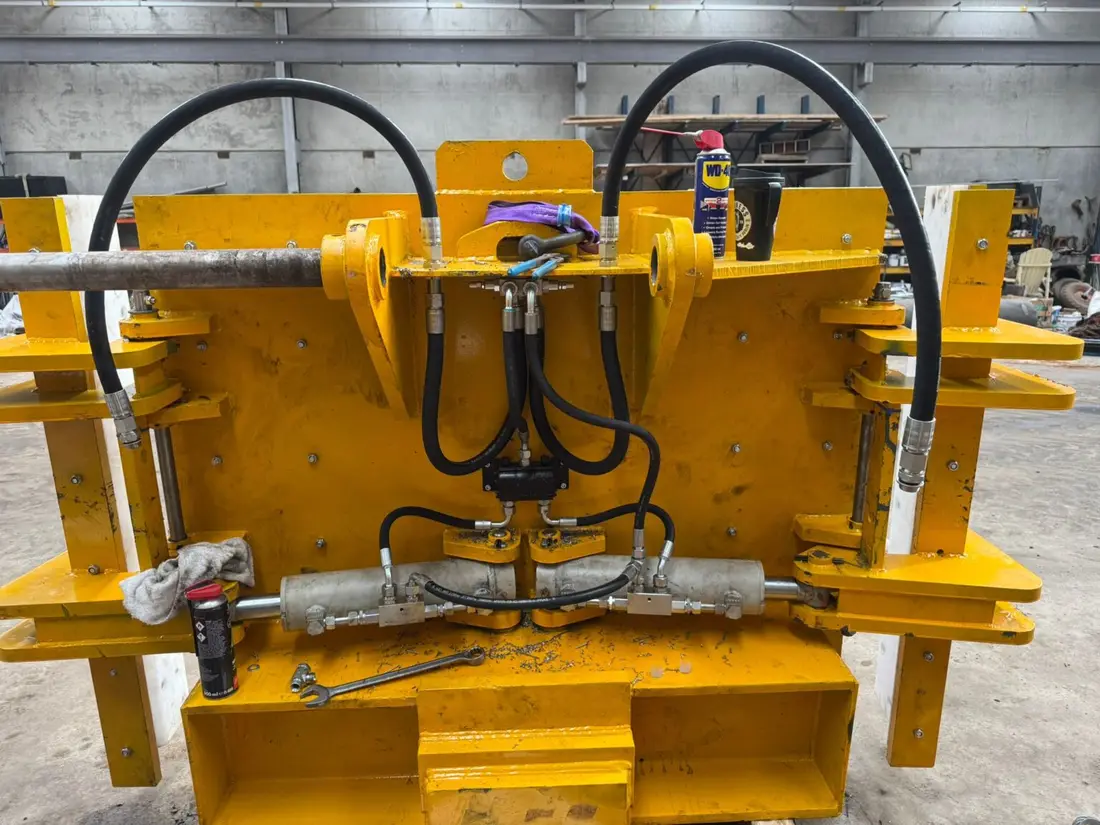

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Draperstown target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Draperstown
The page covers Draperstown and surrounding Sperrins-side rural locations. Nearby places include Magherafelt, Maghera, Moneymore, Desertmartin and Moneyneany.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Draperstown page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Draperstown and whether the machine can be moved safely.
Based in Lavy. Serving Draperstown.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Draperstown and nearby areas where suitable.
Magherafelt BT45 8QD
Draperstown is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Draperstown
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Draperstown?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Draperstown and nearby areas such as Magherafelt and Maghera.
What should I send before a hose breakdown visit around Draperstown?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Draperstown?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Draperstown is an area we service, not a separate branch location. This page describes genuine service coverage for Draperstown and surrounding areas; call-out suitability depends on the job and availability.
