Hydraulic Hose Repairs Templepatrick
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Templepatrick
What hydraulic hose support in Templepatrick actually means
The wider Templepatrick service area includes machines working in places where recovery is awkward. A telehandler, excavator or loader with a failed main line may be unable to travel, lower an attachment or complete the movement needed to get itself out of the job.
CPR serves Templepatrick and nearby areas towards Antrim, Ballyclare, Crumlin and Aldergrove. Nearby places such as Antrim, Ballyclare and Crumlin are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on rapid call-out and workshop options for heavy-plant hydraulic hose failures. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Templepatrick, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.
Earthmoving plant
For Templepatrick, this includes excavators and diggers using pressure, return, pilot and attachment lines. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Material handlers
For Templepatrick, this includes telehandlers and loaders with moving booms and changing hose geometry. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Site transport
For Templepatrick, this includes dumpers and similar plant using hydraulic tipping and steering functions. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Quarry-style equipment
For Templepatrick, this includes heavy machinery where large-bore and high-flow hose work can be common. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Farm machinery
For Templepatrick, this includes tractors, handlers and implements operating in abrasive, contaminated environments. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Workshop equipment
For Templepatrick, this includes hydraulic machinery where rigid pipe and flexible hose often meet in the same circuit. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
Routing, bend and abrasion matter after the new hose is fitted
Large plant around Templepatrick can use several fitting families on the same machine. One circuit may use a cone seat, another a face seal and another a flange. Matching the actual sealing method is more important than finding a fitting that merely seems to screw together.
A hose that is too short can be pulled tight at full articulation. One that is too long can rub, snag or kink. Hose life can also be shortened by twisting, tight bends, clamp points, heat and contact with steel edges. When a hose has failed repeatedly in the same place, the route deserves as much attention as the replacement assembly.
The failure point tells you something
A leak at the crimp, a burst in the hose body, exposed reinforcement, abrasion through the cover and damage next to the fitting are different failure patterns. Replacing the hose is the immediate job, but the pattern can also point to routing, movement, age, contamination or mechanical damage that should be checked before the machine returns to work.
Applied to Templepatrick, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Stop and isolate
High-pressure oil is dangerous. Shut down and depressurise safely before inspection or removal. That is especially relevant around Templepatrick when downtime or machine recovery is difficult.
Record length and orientation
Before the old hose is discarded, note overall length and how angled ends sit relative to one another. That is especially relevant around Templepatrick when downtime or machine recovery is difficult.
Identify the connection family
Check the sealing face, thread or flange arrangement and separate machine adapters from the actual hose end. That is especially relevant around Templepatrick when downtime or machine recovery is difficult.
Return the machine carefully
Once fitted, inspect routing and connections as hydraulic pressure is restored in line with normal machine procedures. That is especially relevant around Templepatrick when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| BSP / JIC / ORFS / Metric-DIN / SAE-style | These families use different threads and sealing arrangements even when they look similar at a glance. | Show both male and female connection faces where possible. |
| Fitting seat condition | A damaged sealing face can continue to leak after a new hose is fitted. | Inspect the machine-side seat, not just the old hose. |
| End orientation | Two angled ends may need a precise rotational relationship. | Mark the old hose before it is twisted or cut. |
| Port access | Tight spaces can limit which fitting geometry is practical. | Include a wider photo showing surrounding components. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Contamination at open ports
A burst line can leave open connections exposed. Keeping dirt out while the hose is replaced protects valves, pumps and other components. For a Templepatrick breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Wrong or forced fitting
A connection that looks nearly right can still use a different seat or sealing method. Forcing it can damage the port and create a leak that a new hose alone will not solve. For a Templepatrick breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Repeated bend at one point
If the same section flexes sharply on every cycle, the hose can fatigue there even when the rest of the assembly appears healthy. For a Templepatrick breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Poor support or clamping
A hose with too much uncontrolled movement can whip, rub and work the fitting ends harder than intended. For a Templepatrick breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Templepatrick breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Templepatrick breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

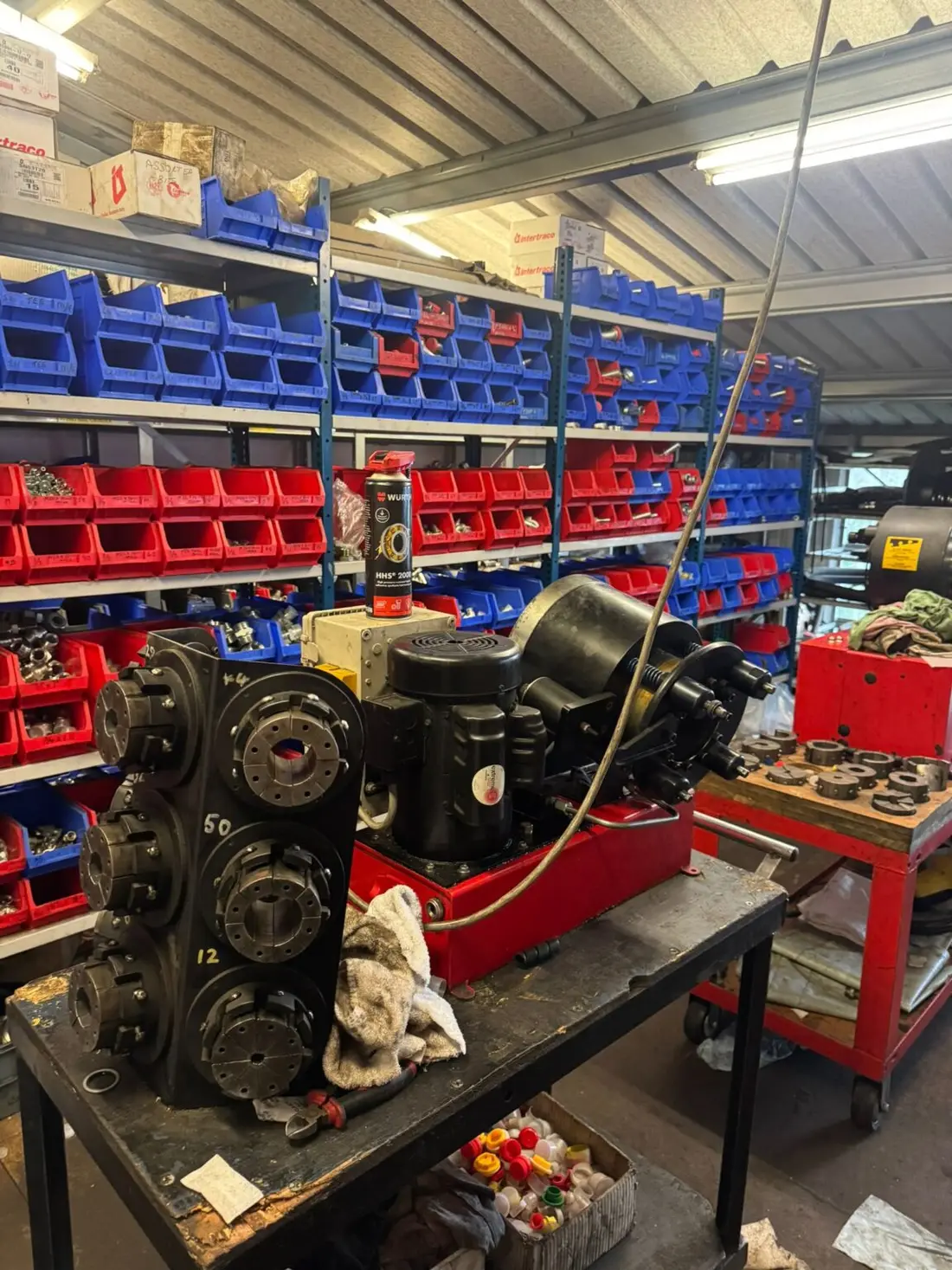

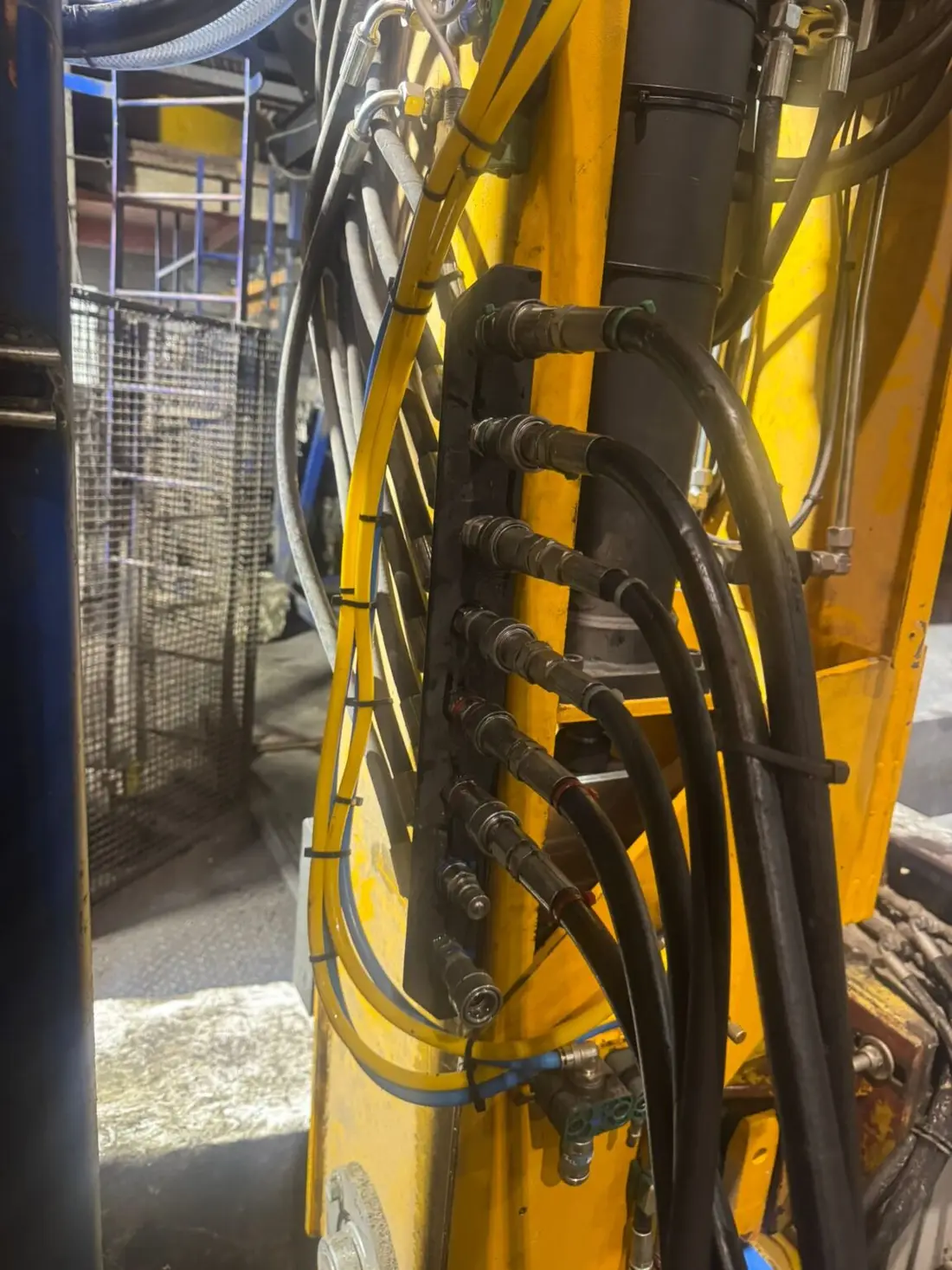

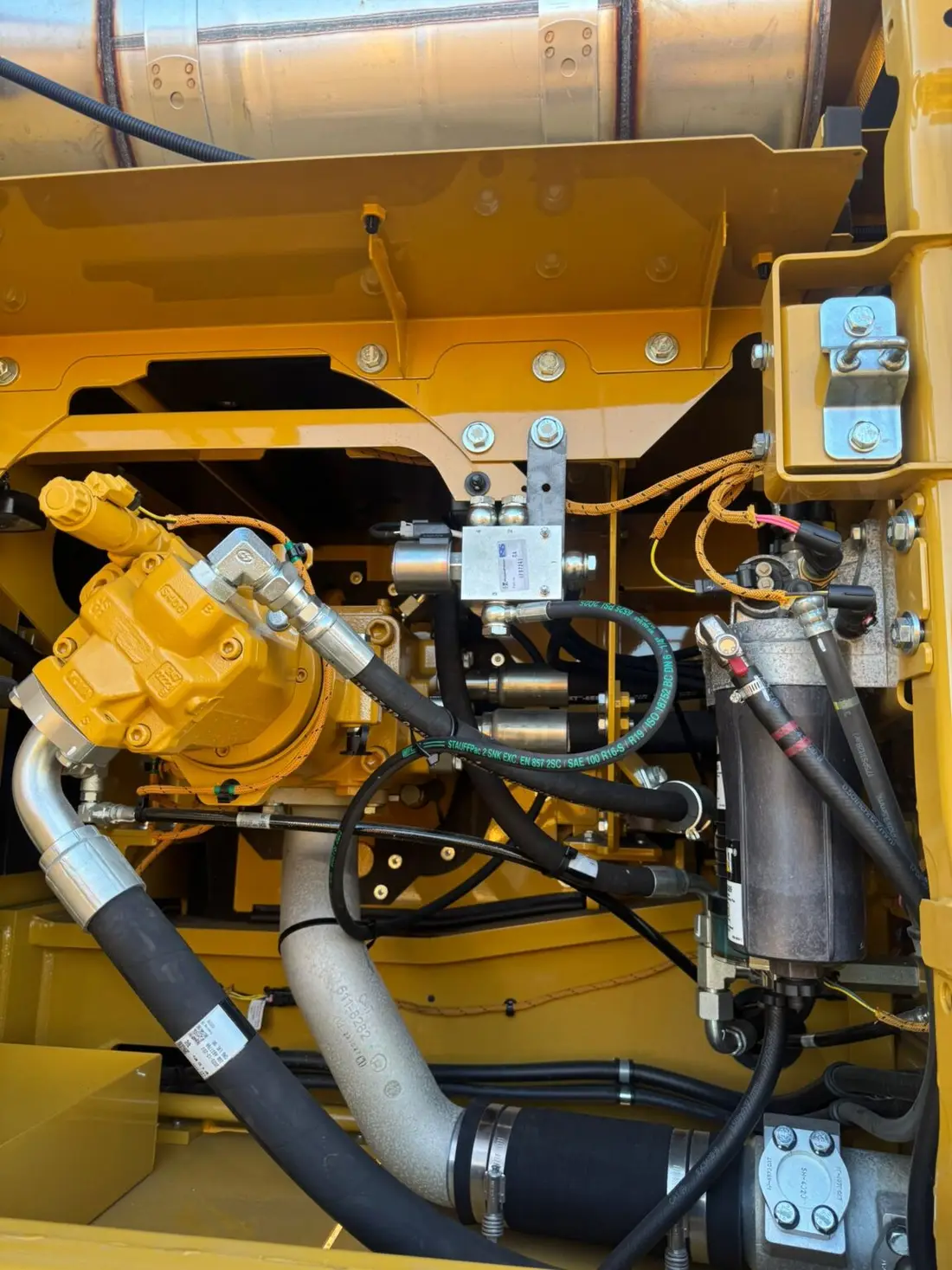

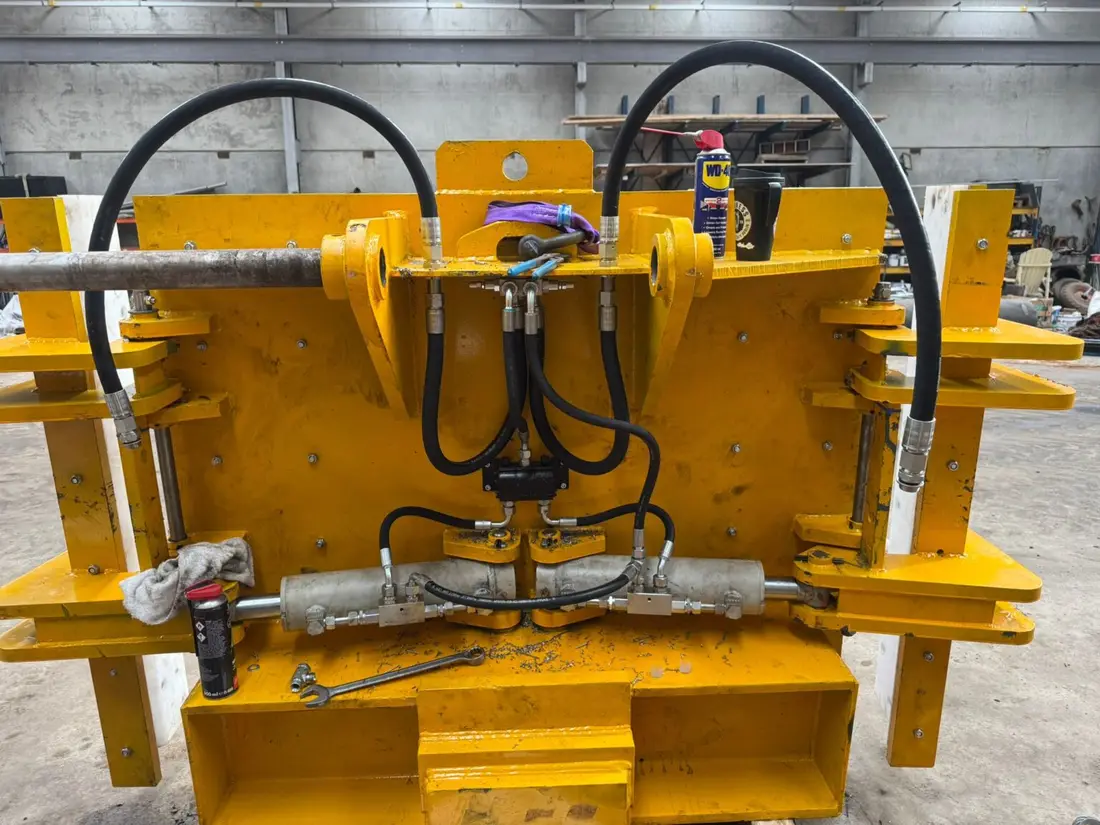

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Templepatrick target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Templepatrick
The page covers Templepatrick and nearby areas towards Antrim, Ballyclare, Crumlin and Aldergrove. Nearby places include Antrim, Ballyclare, Crumlin, Doagh and Aldergrove.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Templepatrick page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Templepatrick and whether the machine can be moved safely.
Based in Lavy. Serving Templepatrick.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Templepatrick and nearby areas where suitable.
Magherafelt BT45 8QD
Templepatrick is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Templepatrick
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Templepatrick?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Templepatrick and nearby areas such as Antrim and Ballyclare.
What should I send before a hose breakdown visit around Templepatrick?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Templepatrick?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Templepatrick is an area we service, not a separate branch location. This page describes genuine service coverage for Templepatrick and surrounding areas; call-out suitability depends on the job and availability.
