Hydraulic Hose Repairs Crumlin
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Crumlin
What hydraulic hose support in Crumlin actually means
A hydraulic breakdown around Crumlin can be deceptively simple: one failed line, one immobilised machine and a crew waiting for movement to return. The expensive part is rarely the length of hose itself; it is the lost operating time while the correct assembly is identified and made.
CPR serves Crumlin and surrounding areas towards Antrim, Glenavy, Templepatrick and Aldergrove. Nearby places such as Antrim, Glenavy and Templepatrick are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on mobile hose support for plant operating on commercial, construction and yard-based jobs. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Crumlin, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.
Excavators & diggers
For Crumlin, this includes boom, dipper, bucket and auxiliary hose circuits that flex through constant articulation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Telehandlers
For Crumlin, this includes boom-extension and attachment lines where controlled movement and end orientation are critical. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Wheel loaders
For Crumlin, this includes lift, tilt and auxiliary hoses exposed around loader arms and couplers. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Dumpers
For Crumlin, this includes tipping and steering circuits on site machinery. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural handlers
For Crumlin, this includes loader, steering and implement hydraulics working in dirty conditions. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Attachments
For Crumlin, this includes breakers, grabs and powered tools that rely on correctly matched auxiliary hoses. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
BSP, JIC, ORFS, Metric/DIN and flange-style ends
Machines around Crumlin often fail hoses at the exact places where movement is concentrated: boom pivots, articulated joints, loader arms and attachment points. The replacement needs to be checked at more than one machine position so the hose is not tight at full extension or trapped when folded.
Heavy plant uses multiple connection families. A thread can look close and still be wrong because the sealing method may be different. CPR works with hose ends, fittings and made-to-spec connections, so the job is to identify the actual seat, thread or flange arrangement rather than forcing a near match. That matters for sealing, reliability and avoiding damage to the machine-side port.
Length and fitting orientation are part of the specification
Two assemblies can use the same hose and the same pair of ends yet still be different if overall length or end orientation changes. That is especially important with 45° and 90° fittings. The safest reference is usually the original assembly, supported by clear photographs of how it sits on the machine.
Applied to Crumlin, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Make the machine safe
Secure attachments, isolate stored energy and follow the machine maker’s depressurising procedure before touching the line. That is especially relevant around Crumlin when downtime or machine recovery is difficult.
Capture the evidence
Photograph both ends, hose markings, adapters and the route before dismantling; keep the failed hose intact where practical. That is especially relevant around Crumlin when downtime or machine recovery is difficult.
Match the assembly
Confirm hose family, bore, end style, length and any angular relationship between fittings. That is especially relevant around Crumlin when downtime or machine recovery is difficult.
Refit without creating stress
Check the hose through the machine’s working range so it is not twisted, pulled tight or rubbing. That is especially relevant around Crumlin when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| Connection ID | Correct identification protects the machine port from cross-threading or a mismatched seal. | Do not rely on outside diameter alone. |
| Hose-to-pipe transition | Rigid steel pipe often changes to flexible hose near articulation points. | Show any adapters or unions between pipe and hose. |
| Large flange ends | High-flow circuits may use flange-style connections that need the correct pattern and sealing elements. | Photograph bolt/flange arrangement and old seal location. |
| Couplers and attachments | Auxiliary circuits may terminate at quick couplers or attachment manifolds. | Show both the hose end and what it connects to. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Crumlin breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Crumlin breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Crumlin breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Pulled tight at full reach
Boom and attachment machinery can hide a length problem until the machine reaches full extension or articulation. For a Crumlin breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
External impact or crush
Debris, attachments, tools and moving structures can damage a hose even when the hydraulic specification itself is correct. For a Crumlin breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Heat exposure
A hose routed too close to exhausts, engines or other hot components can age faster and lose flexibility. For a Crumlin breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

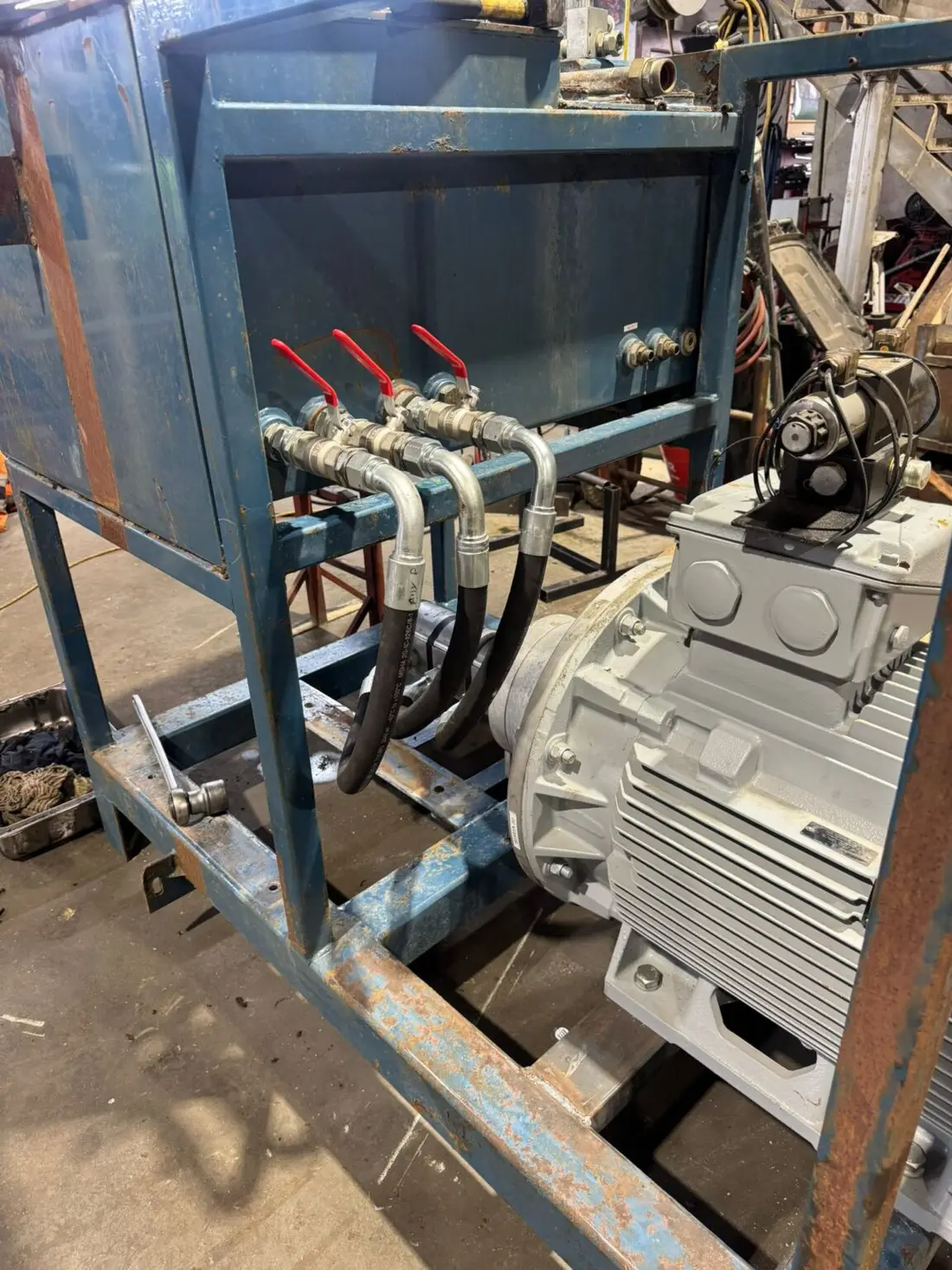

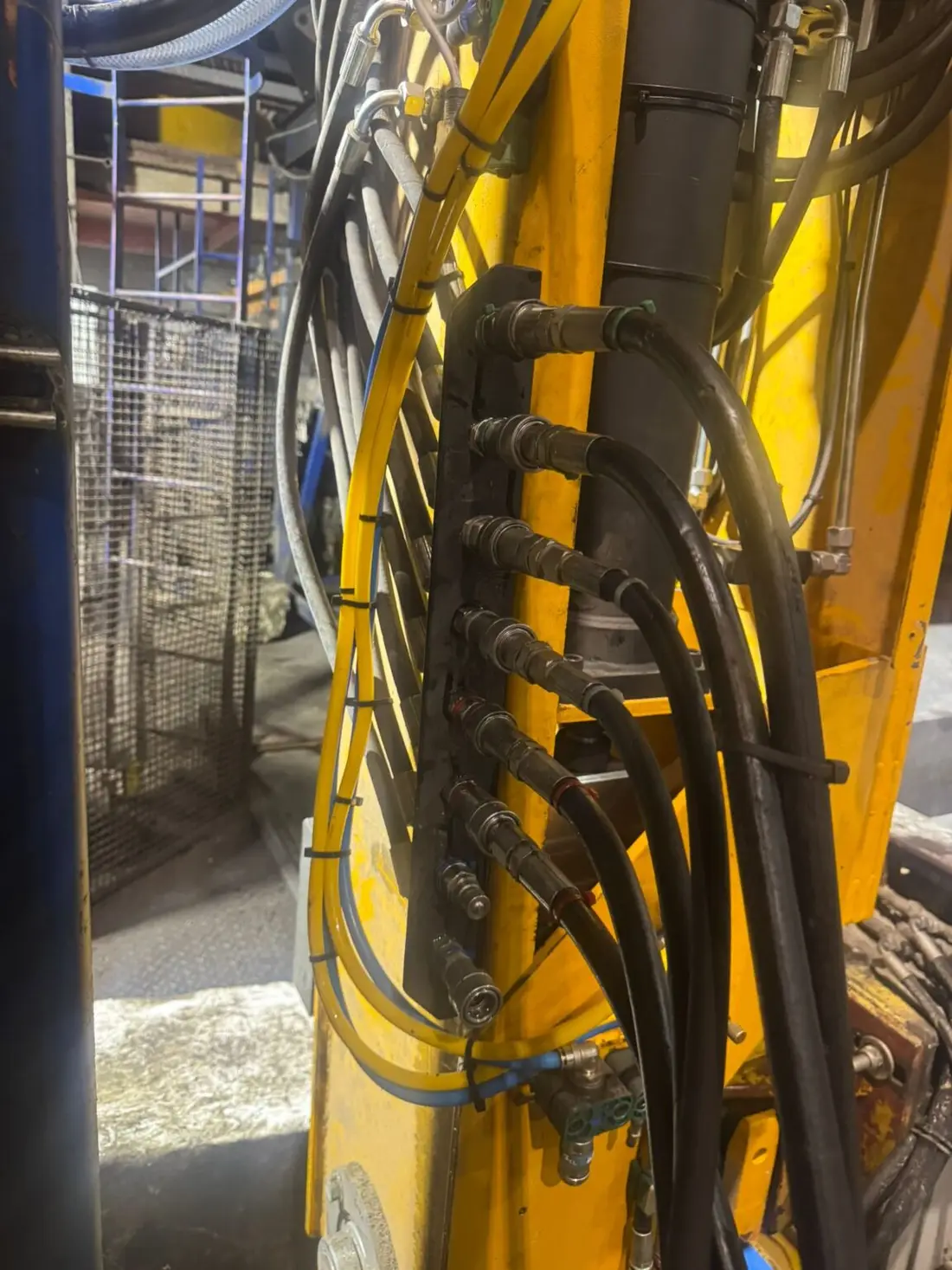

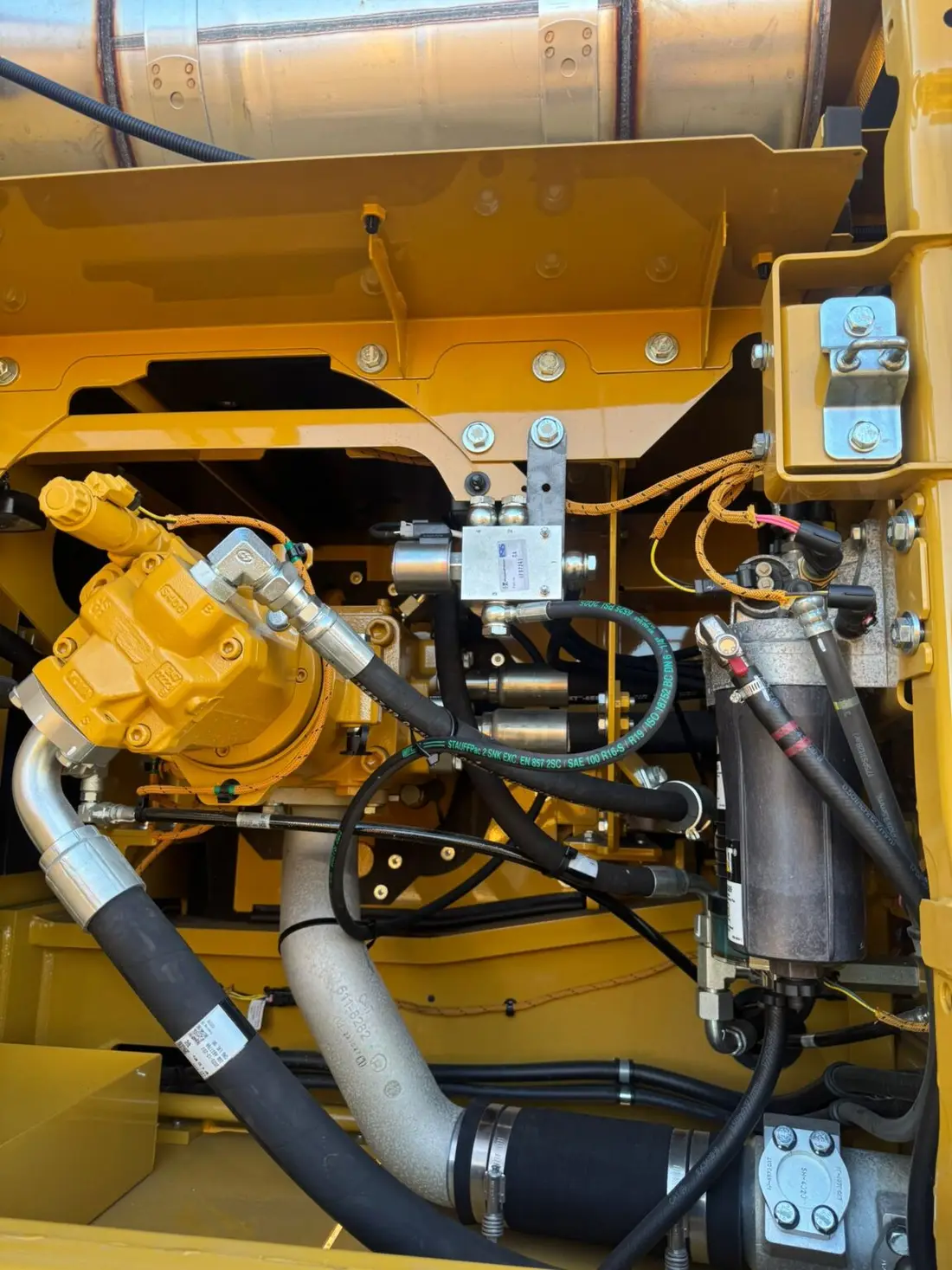

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Crumlin target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Crumlin
The page covers Crumlin and surrounding areas towards Antrim, Glenavy, Templepatrick and Aldergrove. Nearby places include Antrim, Glenavy, Templepatrick, Nutts Corner and Aldergrove.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Crumlin page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Crumlin and whether the machine can be moved safely.
Based in Lavy. Serving Crumlin.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Crumlin and nearby areas where suitable.
Magherafelt BT45 8QD
Crumlin is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Crumlin
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Crumlin?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Crumlin and nearby areas such as Antrim and Glenavy.
What should I send before a hose breakdown visit around Crumlin?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Crumlin?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Crumlin is an area we service, not a separate branch location. This page describes genuine service coverage for Crumlin and surrounding areas; call-out suitability depends on the job and availability.
