Hydraulic Hose Repairs Strabane
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Strabane
What hydraulic hose support in Strabane actually means
For contractors and plant operators around Strabane, the useful question is not whether somebody can make 'a hose'. It is whether the replacement will match the machine’s pressure duty, connection style, overall length and movement without introducing another weak point.
CPR serves Strabane, Sion Mills and surrounding areas towards Newtownstewart, Castlederg and Derry. Nearby places such as Sion Mills, Newtownstewart and Castlederg are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on hose replacement for plant working across construction, agriculture and cross-regional contracting jobs. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Strabane, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.

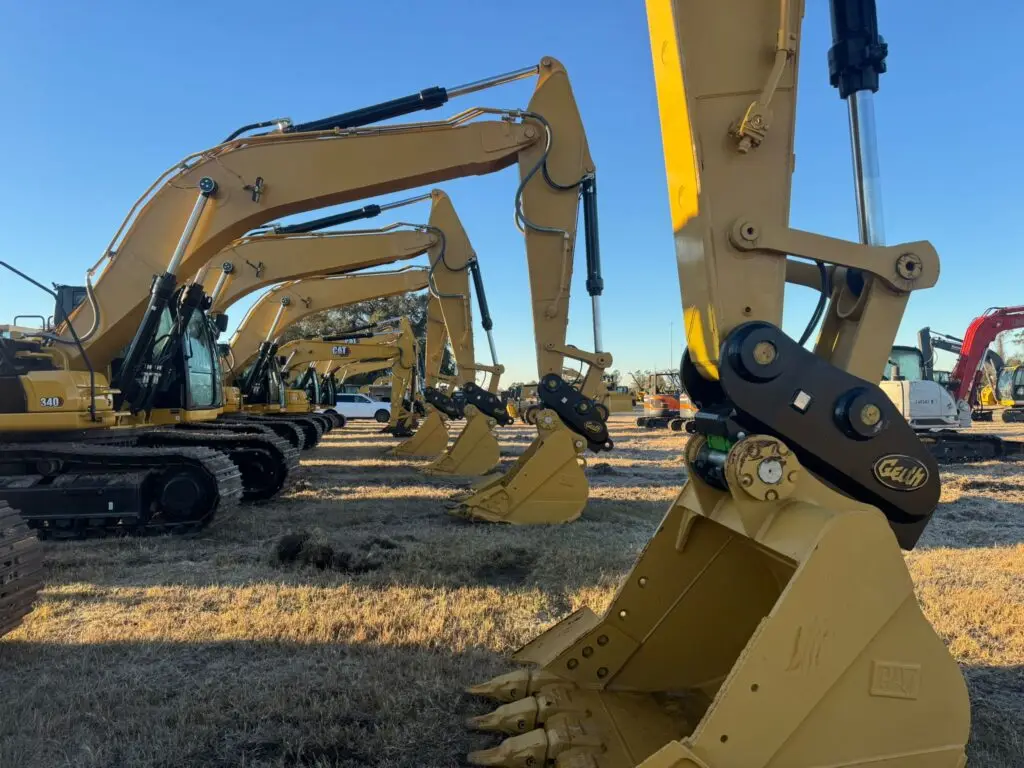

Heavy excavators
For Strabane, this includes large machines where a burst hose can stop an entire site operation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Compact excavators
For Strabane, this includes smaller plant where tight routing makes a few centimetres of hose length significant. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Telehandlers & forklifts
For Strabane, this includes lifting equipment with boom, mast, steering and attachment circuits. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Loaders & shovel plant
For Strabane, this includes repeated lift/tilt cycles that demand durable routing and correct crimped ends. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural equipment
For Strabane, this includes high-use seasonal machinery where downtime quickly becomes expensive. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Ancillary plant
For Strabane, this includes hydraulically powered attachments, presses and specialist machinery. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
How CPR identifies the failed assembly
A burst hose around Strabane can leave ports open in dirty site or farm conditions. Protecting those connections while the hose is away prevents soil, grit and metal debris from turning a simple hose replacement into a valve, pump or spool problem.
A replacement starts with identification, not guesswork. The useful clues are the hose markings, internal bore, reinforcement family, overall length, end fittings and how the two ends are oriented. On a machine with angled ends, even a correctly sized hose can sit badly if the orientation is wrong. Clear photographs and the removed hose are often the fastest route to a correct match.
Steel pipework and flexible hose often meet in the same circuit
Many heavy machines combine rigid steel hydraulic pipe with flexible hose at articulation points or where vibration needs to be isolated. CPR’s current hose page also describes bespoke steel hydraulic pipework, so unusual hose-to-pipe transitions and made-to-spec connections are part of the wider hydraulic job rather than an afterthought.
Applied to Strabane, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Work out what actually failed
A wet fitting, burst body and abrasion spot are different clues. Identify the exact failed assembly before parts are removed. That is especially relevant around Strabane when downtime or machine recovery is difficult.
Protect the open circuit
Once disconnected, keep dirt and debris away from open ports and the new assembly. That is especially relevant around Strabane when downtime or machine recovery is difficult.
Build from a reliable reference
Use the original assembly and machine-side connections to verify the replacement instead of relying on a visual guess. That is especially relevant around Strabane when downtime or machine recovery is difficult.
Check the route under movement
A hose that looks fine parked can tighten or foul when a boom or attachment moves. That is especially relevant around Strabane when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| Thread or flange family | A fitting can be the same apparent size yet use a different thread form or flange pattern. | Photograph the entire end and the machine-side port. |
| Sealing face | Some ends seal on a cone, flat face, O-ring or flange surface rather than on the thread. | Take a straight-on photo of the nose/face of the fitting. |
| Straight / 45° / 90° geometry | The angle determines how the hose leaves the port and whether it clears surrounding steelwork. | Keep the failed assembly in its natural orientation. |
| Adapters | Machine-side adapters can be mistaken for part of the hose fitting. | Photograph the connection before dismantling. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Wrong or forced fitting
A connection that looks nearly right can still use a different seat or sealing method. Forcing it can damage the port and create a leak that a new hose alone will not solve. For a Strabane breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Repeated bend at one point
If the same section flexes sharply on every cycle, the hose can fatigue there even when the rest of the assembly appears healthy. For a Strabane breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Poor support or clamping
A hose with too much uncontrolled movement can whip, rub and work the fitting ends harder than intended. For a Strabane breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Strabane breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Strabane breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Strabane breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

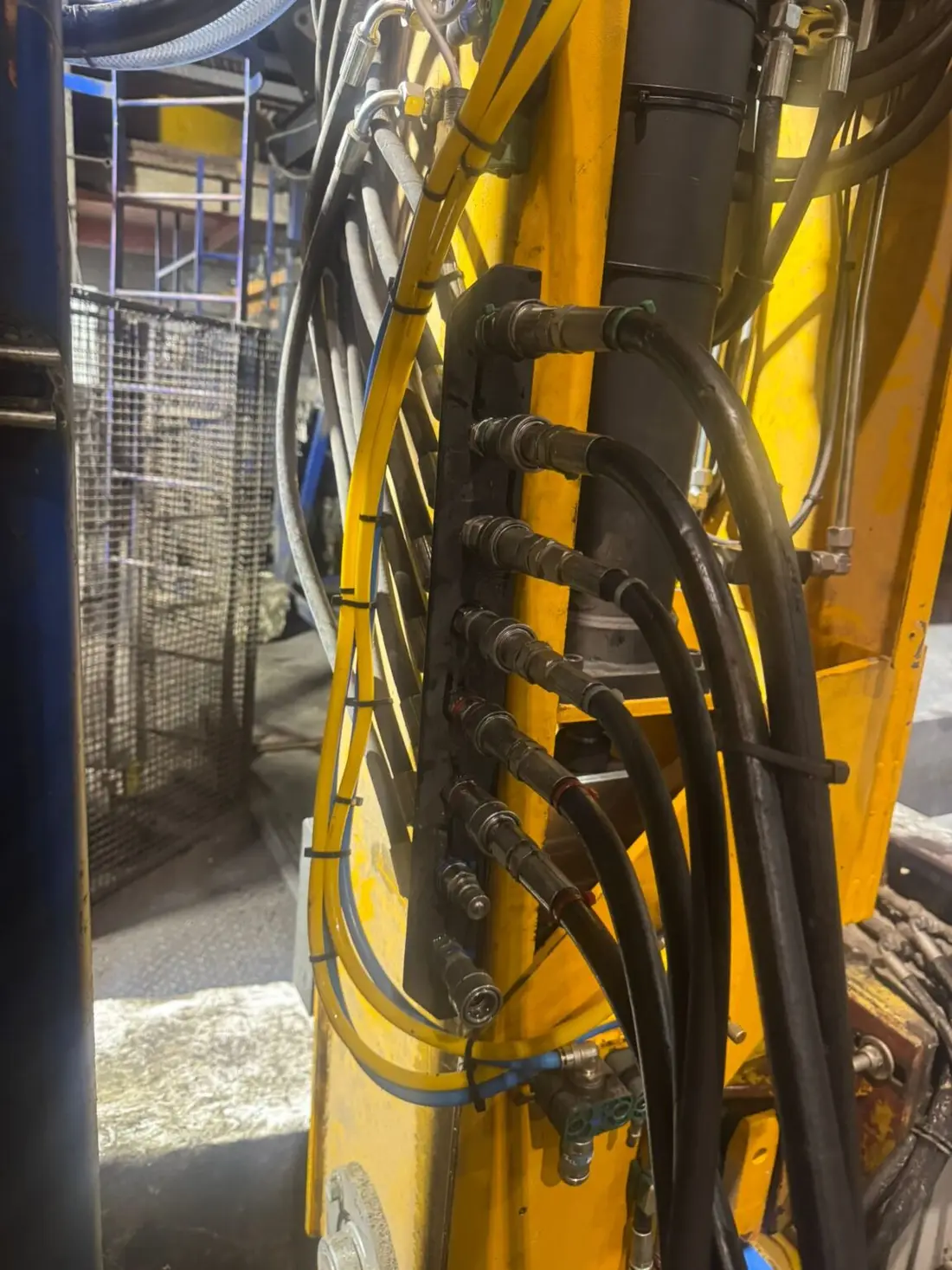

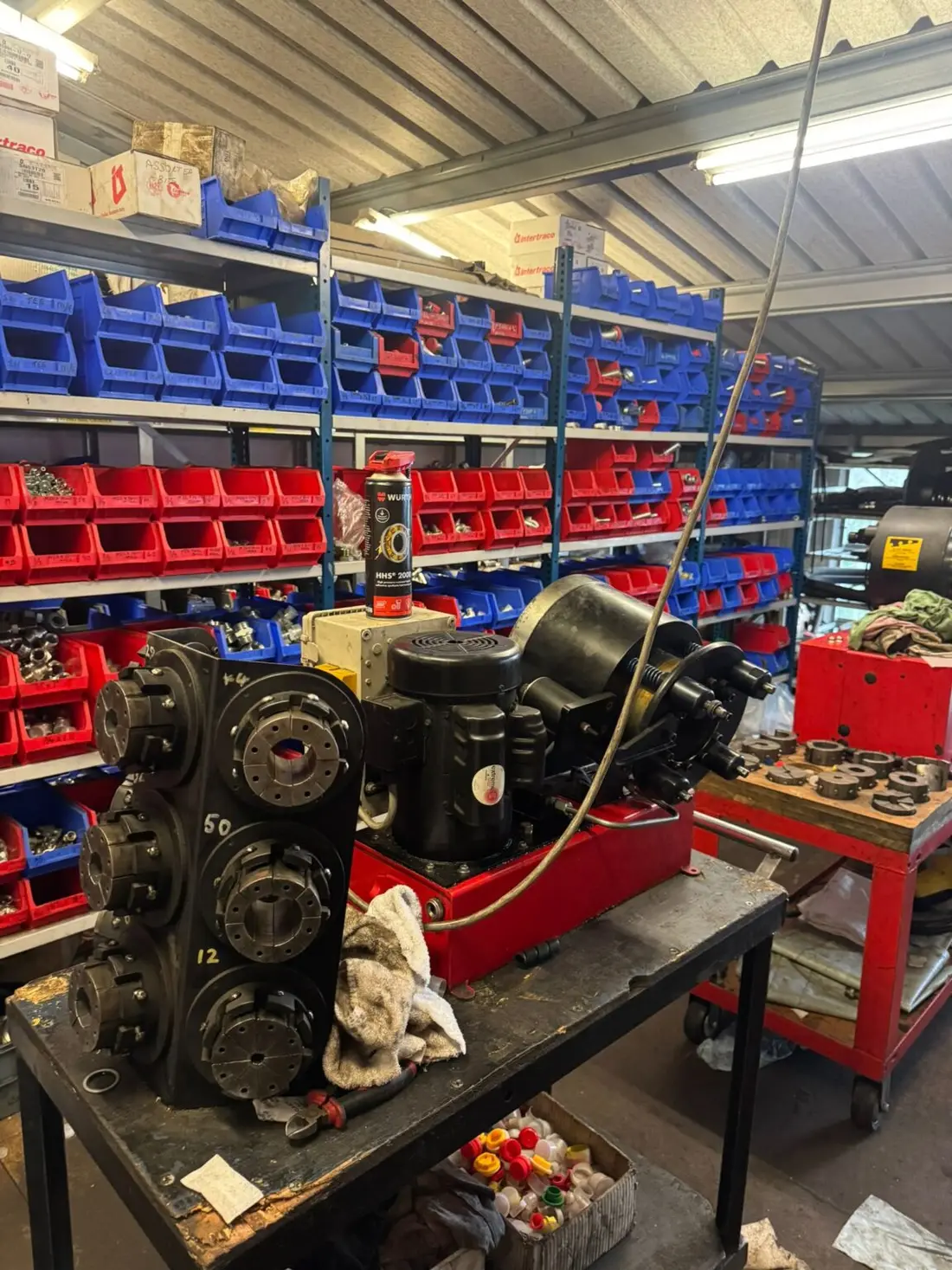

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Strabane target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Strabane
The page covers Strabane, Sion Mills and surrounding areas towards Newtownstewart, Castlederg and Derry. Nearby places include Sion Mills, Newtownstewart, Castlederg, Derry and Plumbridge.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Strabane page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Strabane and whether the machine can be moved safely.
Based in Lavy. Serving Strabane.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Strabane and nearby areas where suitable.
Magherafelt BT45 8QD
Strabane is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Strabane
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Strabane?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Strabane and nearby areas such as Sion Mills and Newtownstewart.
What should I send before a hose breakdown visit around Strabane?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Strabane?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Strabane is an area we service, not a separate branch location. This page describes genuine service coverage for Strabane and surrounding areas; call-out suitability depends on the job and availability.
