Hydraulic Hose Repairs Fintona
Heavy-duty hydraulic hose manufacture, replacement and breakdown support for excavators, diggers, telehandlers, loaders, dumpers, agricultural machinery and other high-pressure plant systems.
This is commercial plant hose work — large-bore assemblies, crimped ends, hydraulic fittings and made-to-spec connections for machinery where a failed line can stop the whole job.
Fintona
What hydraulic hose support in Fintona actually means
For contractors and plant operators around Fintona, the useful question is not whether somebody can make 'a hose'. It is whether the replacement will match the machine’s pressure duty, connection style, overall length and movement without introducing another weak point.
CPR serves Fintona and nearby areas towards Omagh, Dromore, Trillick and Beragh. Nearby places such as Omagh, Dromore and Trillick are included because they form part of the realistic surrounding catchment, not because CPR is claiming a separate branch in each settlement. CPR Hydraulics is based in Lavy, near Magherafelt.
This page therefore concentrates on agricultural and contractor hose failures including auxiliary, steering, lift and attachment circuits. If the machine can be made safe and the failed assembly removed intact, taking the hose to the workshop gives the technician the best physical reference. If the machine is immobilised, photographs of the fittings, hose markings and route can help decide what support is practical before anyone travels.
Around Fintona, the machines most likely to justify urgent support are the ones that cannot earn or complete the job without hydraulics: excavators that cannot move a boom, telehandlers that cannot lift or retract correctly, loaders with a failed lift/tilt circuit, dumpers with tipping issues, and agricultural machines stopped during time-sensitive work. The page is written for those situations rather than for low-pressure domestic hose use.
Hoses for machinery that works under hydraulic load
The machine cards below are deliberately specific. They show the kind of movement and hose duty CPR is targeting rather than padding the page with unrelated “hose repair” keywords.
Excavator attachments
For Fintona, this includes breaker, grab and auxiliary circuits that may use different hose sizes and fitting arrangements. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Boom machinery
For Fintona, this includes telehandlers and loaders where hoses need enough movement without being allowed to rub or snag. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Digger hydraulics
For Fintona, this includes bucket, dipper and slew-related lines exposed to site debris and articulation. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Agricultural plant
For Fintona, this includes handlers, tractors and implements with quick couplers and mixed connection families. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Commercial machinery
For Fintona, this includes yard and industrial equipment that depends on reliable hydraulic power. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Custom applications
For Fintona, this includes bespoke assemblies where original hose, end geometry and machine-side ports are the best references. The important point is matching the assembly to the actual machine rather than supplying a generic hose.
Six details CPR needs to get right
The old hose is valuable because it contains information that a generic catalogue search cannot safely infer.
BSP, JIC, ORFS, Metric/DIN and flange-style ends
When plant is stopped around Fintona, recovery cost can exceed the hose job itself. If the machine cannot lower, steer, tip or travel safely, a mobile response may be more sensible than arranging transport. If the hose is accessible and removable, workshop manufacture can be the cleaner route.
Heavy plant uses multiple connection families. A thread can look close and still be wrong because the sealing method may be different. CPR works with hose ends, fittings and made-to-spec connections, so the job is to identify the actual seat, thread or flange arrangement rather than forcing a near match. That matters for sealing, reliability and avoiding damage to the machine-side port.
The failure point tells you something
A leak at the crimp, a burst in the hose body, exposed reinforcement, abrasion through the cover and damage next to the fitting are different failure patterns. Replacing the hose is the immediate job, but the pattern can also point to routing, movement, age, contamination or mechanical damage that should be checked before the machine returns to work.
Applied to Fintona, that means the technician needs enough evidence to reproduce how the original assembly actually functioned on the machine, not merely how it looked after it had failed.
From stopped machine to a usable replacement
There is no value in making a hose quickly if it is the wrong hose. A disciplined breakdown process reduces wasted trips and repeat failures.
Work out what actually failed
A wet fitting, burst body and abrasion spot are different clues. Identify the exact failed assembly before parts are removed. That is especially relevant around Fintona when downtime or machine recovery is difficult.
Protect the open circuit
Once disconnected, keep dirt and debris away from open ports and the new assembly. That is especially relevant around Fintona when downtime or machine recovery is difficult.
Build from a reliable reference
Use the original assembly and machine-side connections to verify the replacement instead of relying on a visual guess. That is especially relevant around Fintona when downtime or machine recovery is difficult.
Check the route under movement
A hose that looks fine parked can tighten or foul when a boom or attachment moves. That is especially relevant around Fintona when downtime or machine recovery is difficult.
Similar-looking hydraulic connections can seal in completely different ways
Heavy plant can use BSP, JIC, ORFS, Metric/DIN and SAE-style flange connections, sometimes with adapters between the hose and the machine. Correct identification protects the port and avoids chasing a leak caused by the wrong sealing method.
| Connection detail | Why it matters | What helps identification |
|---|---|---|
| BSP / JIC / ORFS / Metric-DIN / SAE-style | These families use different threads and sealing arrangements even when they look similar at a glance. | Show both male and female connection faces where possible. |
| Fitting seat condition | A damaged sealing face can continue to leak after a new hose is fitted. | Inspect the machine-side seat, not just the old hose. |
| End orientation | Two angled ends may need a precise rotational relationship. | Mark the old hose before it is twisted or cut. |
| Port access | Tight spaces can limit which fitting geometry is practical. | Include a wider photo showing surrounding components. |
Six things worth checking before the new hose goes back on
The location of the damage often tells you whether the original assembly simply aged out or whether routing, movement, heat or connection problems contributed.
Poor support or clamping
A hose with too much uncontrolled movement can whip, rub and work the fitting ends harder than intended. For a Fintona breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Abrasion on steelwork
Outer-cover wear usually means the hose has been moving against a frame, boom, clamp or neighbouring line. The replacement needs a route that avoids repeating the same contact. For a Fintona breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Failure next to the crimp
A split close to the fitting can concentrate attention on flex, fitting angle, hose age and whether the assembly is being bent too close to the end. For a Fintona breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Twisted assembly
A hose installed with angular tension can try to unwind every time the circuit moves. End orientation matters on assemblies using angled fittings. For a Fintona breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
Pulled tight at full reach
Boom and attachment machinery can hide a length problem until the machine reaches full extension or articulation. For a Fintona breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.
External impact or crush
Debris, attachments, tools and moving structures can damage a hose even when the hydraulic specification itself is correct. For a Fintona breakdown, noting where the failure occurred gives CPR more useful information than simply saying “the hose burst”.

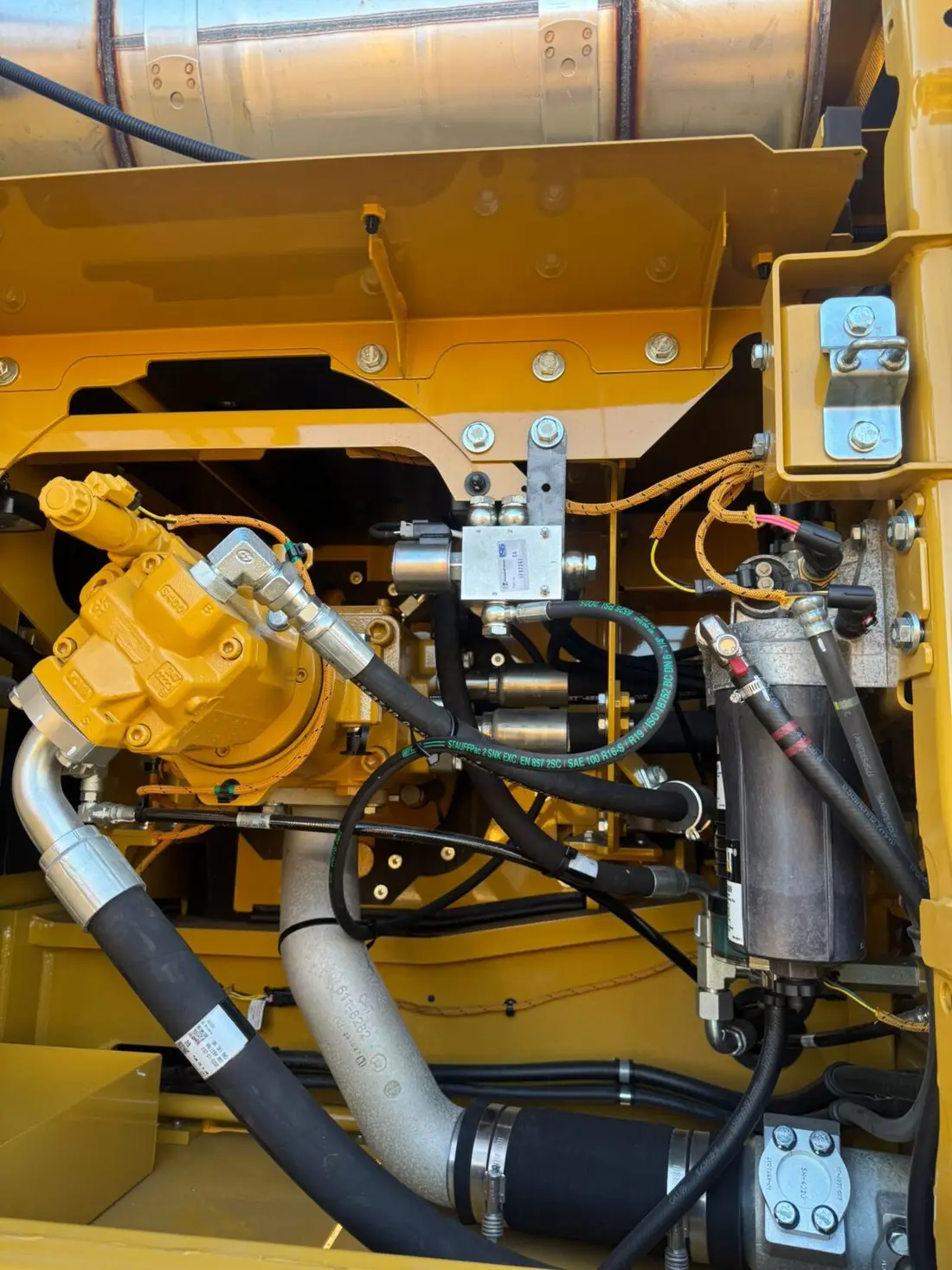

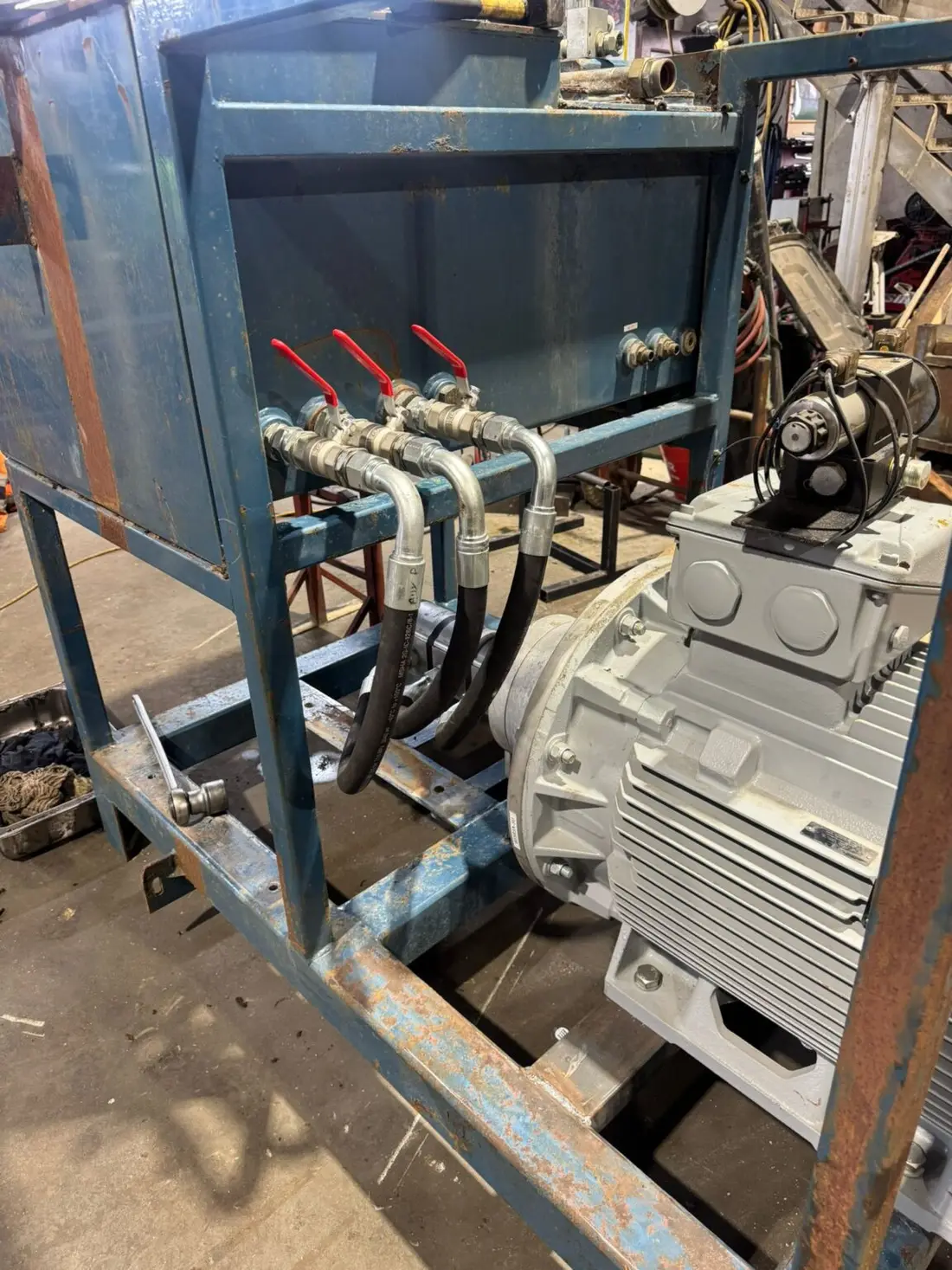

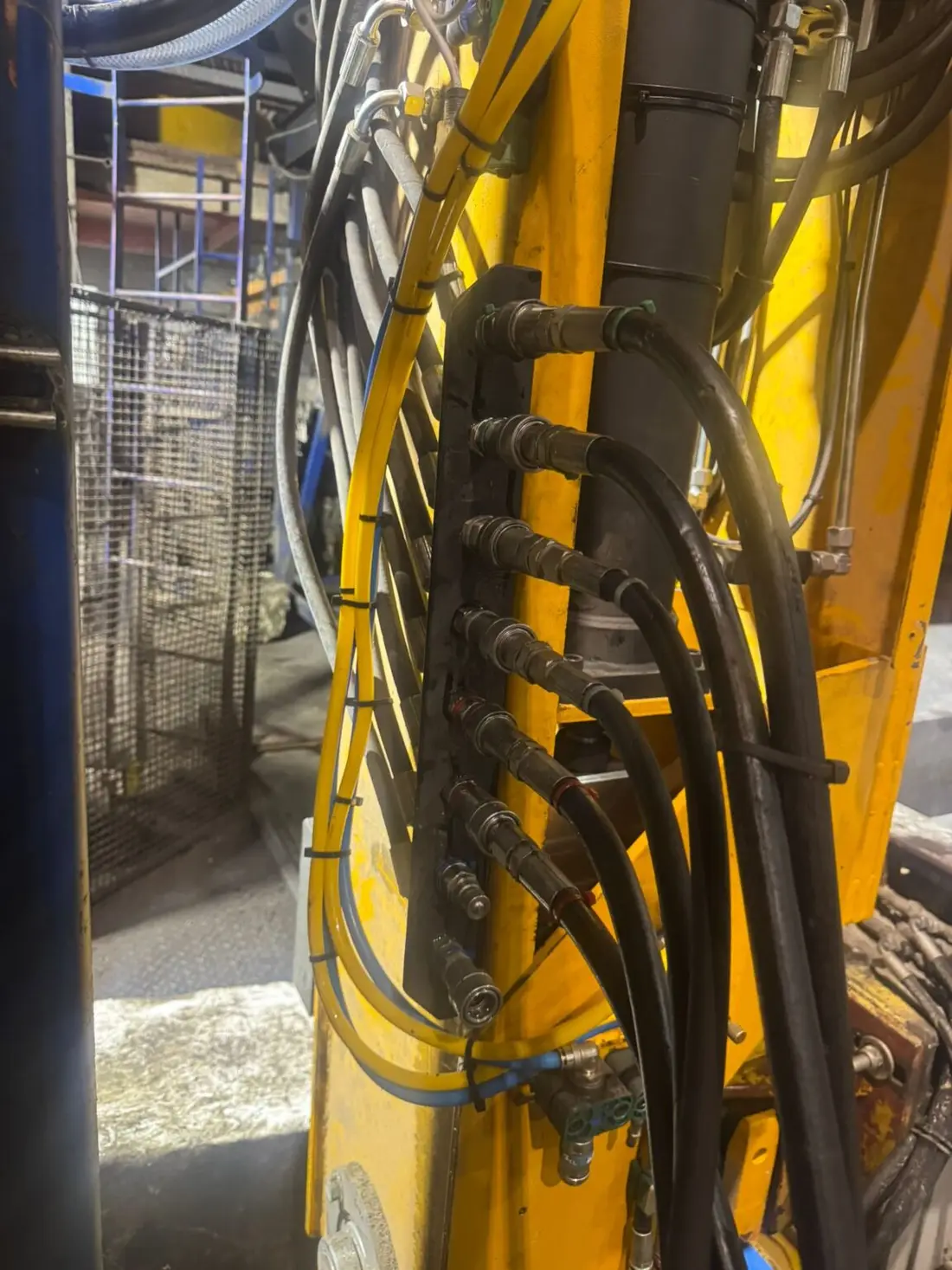

Heavy hose assemblies, fittings and workshop capability
Each image file on this page is renamed around the Fintona target query, while the alt text still describes what the image actually shows. The photos support the service rather than acting as generic decoration.
Hydraulic hose repairs around Fintona
The page covers Fintona and nearby areas towards Omagh, Dromore, Trillick and Beragh. Nearby places include Omagh, Dromore, Trillick, Beragh and Tempo.
That geographic wording is deliberate: CPR is not pretending to have a depot in every town. CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD. The Fintona page exists because the business genuinely serves the wider area and the local information helps customers decide whether to bring a removed hose in or ask about call-out support.
What to have ready
Machine: make, model and what hydraulic function has stopped.
Hose: photos of both ends, markings and any obvious damage.
Connection: one close-up and one wider photo showing adapters and surrounding pipework.
Location: site or yard location around Fintona and whether the machine can be moved safely.
Based in Lavy. Serving Fintona.
CPR Hydraulics operates from Lavy, near Magherafelt. Our base is at 7 Drumard Hill, Magherafelt BT45 8QD, and we provide hydraulic hose repair, replacement and mobile call-out support for plant and machinery in Fintona and nearby areas where suitable.
Magherafelt BT45 8QD
Fintona is a service area rather than a separate CPR branch. The map shows our actual operating base.
Hydraulic hose repair questions in Fintona
Answers that help a plant operator provide the right information before a hose is made or a call-out is considered.
Do you repair hydraulic hoses on excavators and diggers in Fintona?
CPR Hydraulics focuses on hydraulic hose manufacture and replacement for plant and machinery, including excavators, diggers, telehandlers, loaders, dumpers and agricultural equipment serving Fintona and nearby areas such as Omagh and Dromore.
What should I send before a hose breakdown visit around Fintona?
Send a close photograph of each hose end, readable hose markings, the machine make/model, the machine-side connection points and one wider image showing where the hose runs. That helps distinguish the hose itself from adapters and surrounding pipework.
Can the old hydraulic hose be used as the pattern?
Yes, where it can be removed safely and kept intact. The old assembly is useful for bore, length, fittings and the rotational relationship between angled ends.
Do you handle large-bore and high-pressure assemblies?
CPR’s existing hose service states that it handles large-bore hose assemblies, hose ends and fittings, made-to-spec connections, and both high- and low-pressure systems.
Is there a CPR workshop in Fintona?
CPR Hydraulics is based in Lavy at 7 Drumard Hill, Magherafelt BT45 8QD; Fintona is an area we service, not a separate branch location. This page describes genuine service coverage for Fintona and surrounding areas; call-out suitability depends on the job and availability.
