Hydraulic Hose Assemblies Made to Specification

Length, end orientation, crimping and fitting selection for made-to-spec assemblies. Written around commercial plant and machinery rather than generic hose applications.

Heavy plantHigh pressureLarge fittingsMade to specification

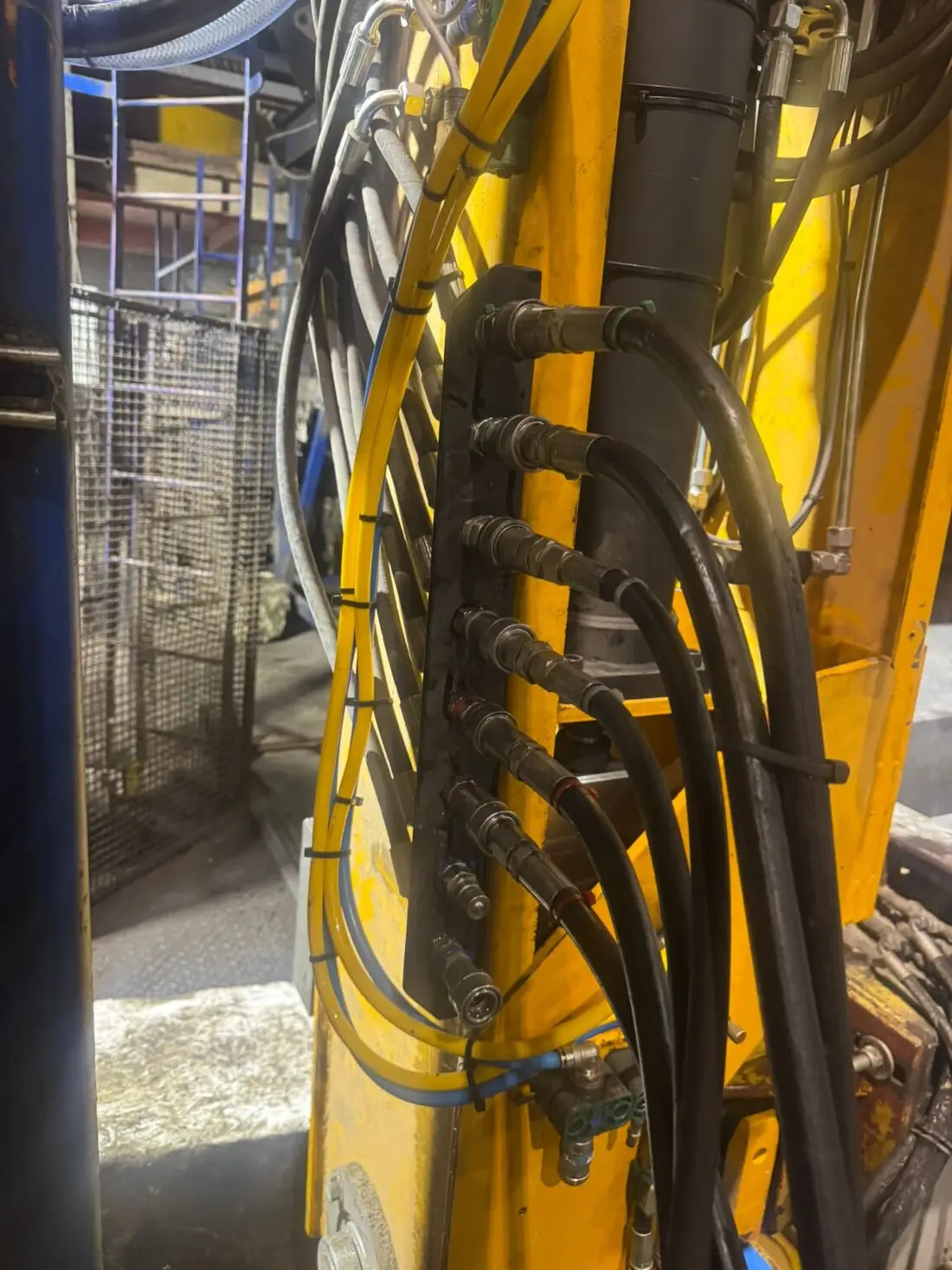

Hydraulic Hose Assemblies Made to Specification for heavy plant and machinery
Technical hose guide
What matters

How CPR identifies the failed assembly

A replacement starts with identification, not guesswork. The useful clues are the hose markings, internal bore, reinforcement family, overall length, end fittings and how the two ends are oriented. On a machine with angled ends, even a correctly sized hose can sit badly if the orientation is wrong. Clear photographs and the removed hose are often the fastest route to a correct match.

Heavy-plant context: a correct hose assembly is defined by more than diameter. Line function, pressure capability, fitting style, length, orientation, movement and operating environment all contribute to whether the replacement is suitable.

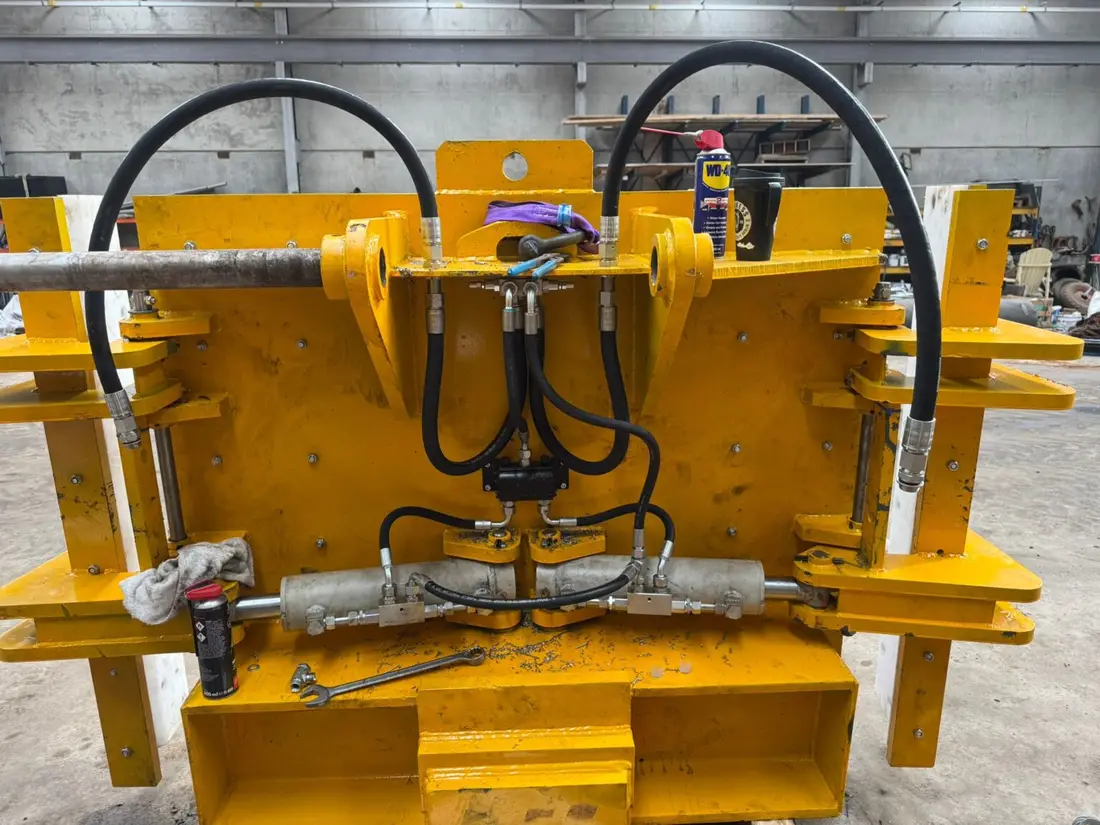

Hydraulic Hose Assemblies Made to Specification on excavator and heavy machinery
Assembly specification

What CPR needs to match

Hose boreFlow and original machine specification matter.
Pressure suitabilityThe hose construction must suit the circuit.
End connectionThread, sealing face or flange must match correctly.
Fitting angleStraight, 45° and 90° ends affect installation.
Overall lengthToo short pulls; too long can rub or snag.
OrientationAngled ends may need a precise relationship.

If the old hose can be removed safely, keeping it intact is valuable. Photograph both ends and the machine-side ports before dismantling where practical.

Why failures repeat

Length and fitting orientation are part of the specification

Two assemblies can use the same hose and the same pair of ends yet still be different if overall length or end orientation changes. That is especially important with 45° and 90° fittings. The safest reference is usually the original assembly, supported by clear photographs of how it sits on the machine.

Correct connection

Do not force a visually similar fitting into a machine-side port. The sealing method matters.

Correct movement

Check the hose through the machine’s working range so it is not pulled tight, twisted or rubbing at full articulation.

Correct environment

Heat, abrasion, debris and repeated flexing can change what a durable installation needs.

How CPR supports the job

Workshop manufacture and call-out support

CPR’s existing service covers large-bore hose assemblies, a range of hose ends and fittings, made-to-spec connections, high- and low-pressure systems, and call-out availability.

Reference the old hose

Use markings, size, end fittings, length and orientation.

Confirm the circuit

Understand whether the hose is pressure, return, suction, pilot or another function.

Make the assembly

Match hose and fitting components and crimp to the intended combination.

Install correctly

Avoid twist, tight bend and obvious abrasion points before returning the machine to work.
