High-Pressure Hydraulic Hoses

Pressure hose construction, reinforcement and correct matching for heavy machinery. Written around commercial plant and machinery rather than generic hose applications.

Heavy plantHigh pressureLarge fittingsMade to specification

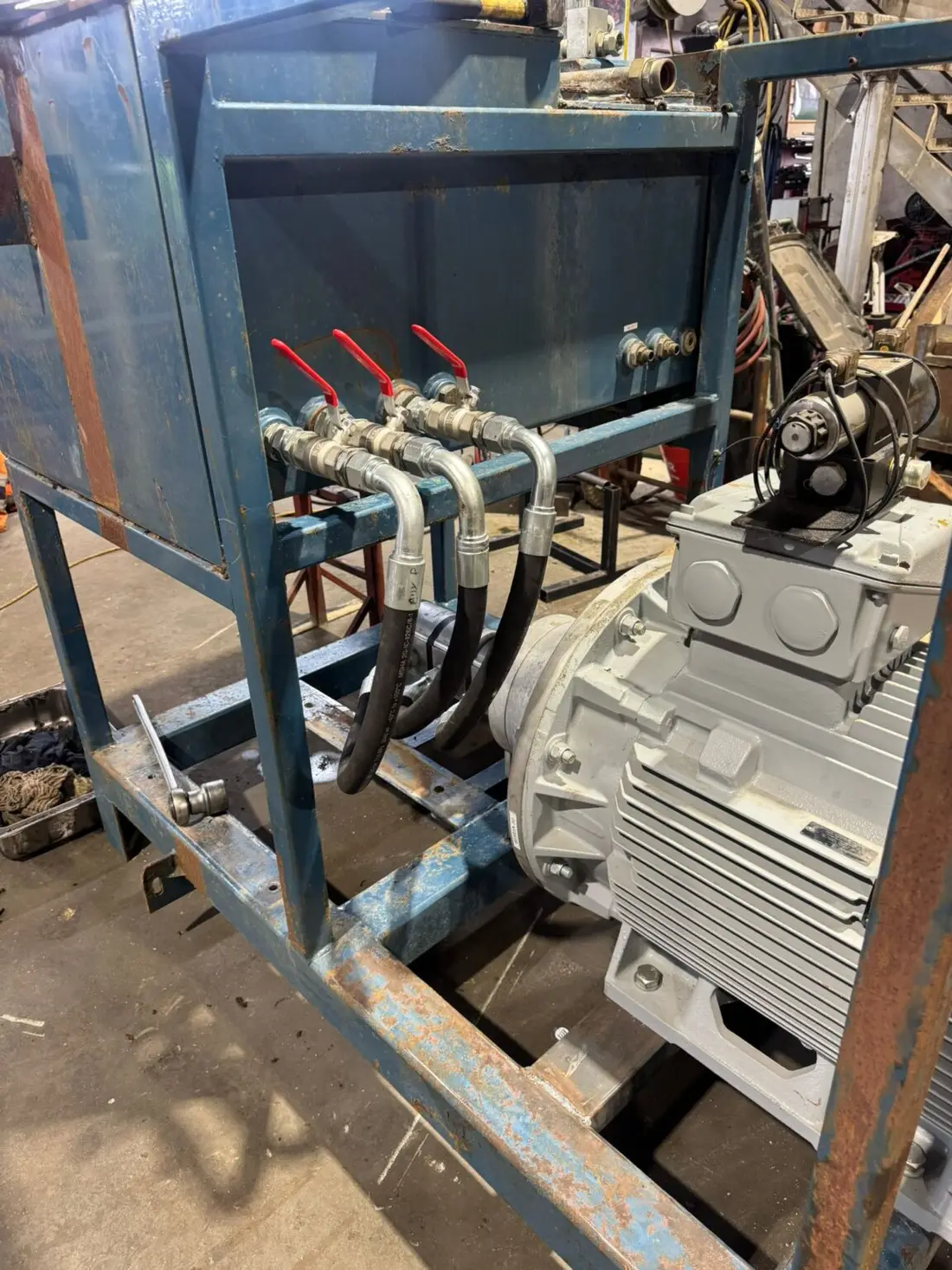

High-Pressure Hydraulic Hoses for heavy plant and machinery
Technical hose guide
What matters

How CPR identifies the failed assembly

A replacement starts with identification, not guesswork. The useful clues are the hose markings, internal bore, reinforcement family, overall length, end fittings and how the two ends are oriented. On a machine with angled ends, even a correctly sized hose can sit badly if the orientation is wrong. Clear photographs and the removed hose are often the fastest route to a correct match.

Heavy-plant context: a correct hose assembly is defined by more than diameter. Line function, pressure capability, fitting style, length, orientation, movement and operating environment all contribute to whether the replacement is suitable.

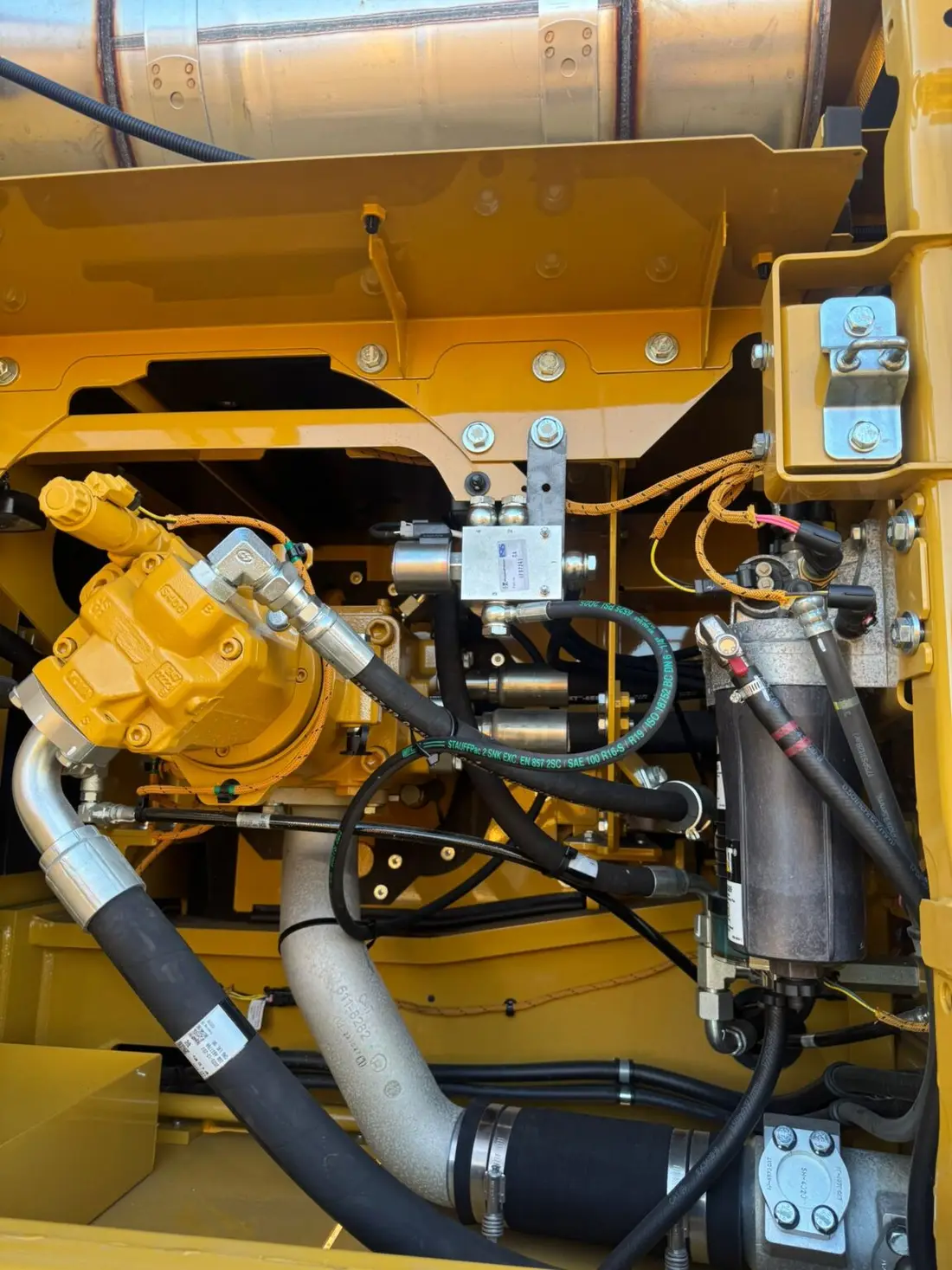

High-Pressure Hydraulic Hoses on excavator and heavy machinery
Assembly specification

What CPR needs to match

Hose boreFlow and original machine specification matter.
Pressure suitabilityThe hose construction must suit the circuit.
End connectionThread, sealing face or flange must match correctly.
Fitting angleStraight, 45° and 90° ends affect installation.
Overall lengthToo short pulls; too long can rub or snag.
OrientationAngled ends may need a precise relationship.

If the old hose can be removed safely, keeping it intact is valuable. Photograph both ends and the machine-side ports before dismantling where practical.

Why failures repeat

Pressure, return, suction and pilot lines are not interchangeable

Hydraulic systems use hoses for different jobs. Main pressure lines may carry high working pressure, return lines move oil back to tank, suction lines can be large bore and sensitive to restriction, while pilot and control circuits may be physically smaller but still critical to machine operation. Matching the line function is part of selecting the right assembly.

Correct connection

Do not force a visually similar fitting into a machine-side port. The sealing method matters.

Correct movement

Check the hose through the machine’s working range so it is not pulled tight, twisted or rubbing at full articulation.

Correct environment

Heat, abrasion, debris and repeated flexing can change what a durable installation needs.

How CPR supports the job

Workshop manufacture and call-out support

CPR’s existing service covers large-bore hose assemblies, a range of hose ends and fittings, made-to-spec connections, high- and low-pressure systems, and call-out availability.

Reference the old hose

Use markings, size, end fittings, length and orientation.

Confirm the circuit

Understand whether the hose is pressure, return, suction, pilot or another function.

Make the assembly

Match hose and fitting components and crimp to the intended combination.

Install correctly

Avoid twist, tight bend and obvious abrasion points before returning the machine to work.

Service area

Find hydraulic hose support near your machine

Use the regional hubs to reach local coverage pages without creating duplicate versions of the same town.

Mid UlsterRegional heavy-plant hose pagesCounty TyroneRegional heavy-plant hose pagesCounty AntrimRegional heavy-plant hose pagesCounty DerryRegional heavy-plant hose pagesNorthern IrelandAll service areas
Questions

High-Pressure Hydraulic Hoses: common questions

Useful checks before a replacement is made.

What does CPR cover on high-pressure hydraulic hoses?

CPR focuses on heavy plant and machinery. This guide explains pressure hose construction, reinforcement and correct matching for heavy machinery.

Can CPR make hoses to specification?

CPR’s existing hose service states that hose or connection assemblies can be made to specification, with hose ends and fittings stocked for heavy plant work.

Does CPR handle large-bore hose?

Yes. CPR’s current hose page specifically states that it handles all types of large-bore hose assemblies.

Is the service available across Northern Ireland?

CPR is based in Mid Ulster and serves a wider Northern Ireland service area. Call-out suitability depends on machine location and availability.
